800ml 1000ml 1L 3L Plastic Car Motorcycle Vehicle Engine Oil Jerry Can Bottle Making Blow Molding Moulding Machine

Product Description

Company Profile
Product Description

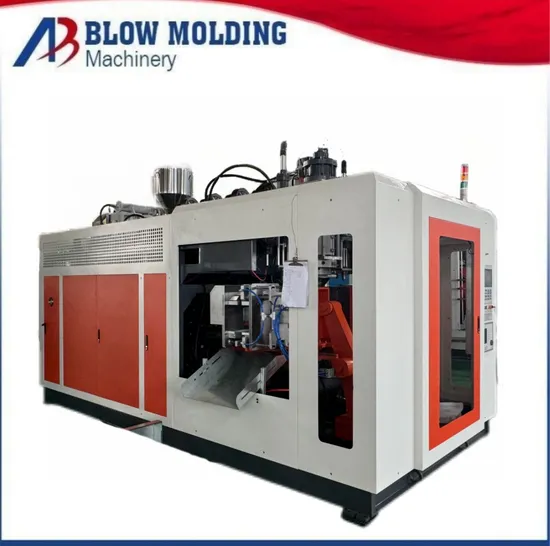

ABLB75 full automatic bottle making machine was specially designed for making plastic water bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic containers not over 8L.
This design is low power consumption and very stable.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 8L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance. Product Parameters

Max. Product volume	8 L
Out put capacity	750*2 pcs/h
Screw diameter	75MM
Screw L/D ratio	24:1 L/D
Screw drive power	22 KW
Screw heating capacity	7-8 KW
No.of heating zone	4 zones
Output of HDPE	100 KG/H
Oil pump drive power	7.5 KW
Clamping force	80 KN
Max.size of mold	400*430 MM
Mold stroke	170-520 MM
Max.die diameter	170 MM
Blowing pressure	0.6 mpa
Air Volume	0.8 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	80 L/MIN
Size of Machine	4.2x2.2x2.7 m
Weight of machine	7.5 Ton

Electronic Parts
Name	Brand
Micro computer control system	Japanese MITSUBISHI
Tempreture Controller	TAIWAN YANHUA PID
Auxiliary Relay	OMRON
Contactor	Schneider(France)
Electric motor	SImens
Power Source	MEANWELL(Taiwan)
Transudcer	ABB
Hydraulic Parts
Oil pump	HIGH-TECH(Taiwan)
Valve	YUKEN(Japan)
Oil pump and connection	YUKEN(Japan)
Swaled part	HALLITE
Air Control System
Cylinder	AIRTAC
Air Wave	AIRTAC

Our Advantages

Detailed Photos

Our service
FAQ
1. Q: -Can the machine customized only for my products?
A: - Yes, most APOLLO machines can be customized as per clients' requirements, including the structure special design and brand of parts special request.
2. Q: -How about the molds ?
A: - APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various for optional.
3. Q: -What is the business item for this project ?
A: - a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed by buyer and APOLLO .
b. Port of Loading: SHANGHAI, CHINA.
c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.
d. Container needed: One 20GP container.

---
