Full Auto Poly Express Bag Making Machine with Jacket

Product Description

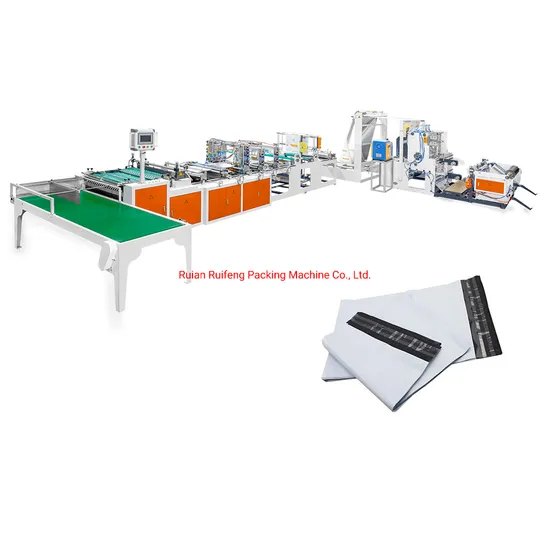

RFKD-800 High speed side sealing express bag making machine
online with pocket film lamination
Machine Description:
This machine is specially used for making courier bag and mail bag from sheet material(PE, PP,OPP,BOPP).
The courier bags or mail bags can be used for express and transportation industry. And this machine will produce mainly for courier bags.
Note:The material should be sheet film.


Features
1) Unwinding install EPC, tension control . pneumatic upload
2) Bottom gusset device, which can gusset max size from bottom is 85mm
3) Printing tracking adopts photocell .
4) motion control with touch screen ,flexible and easier operation.
5) Such products are also used by hospitals, laboratories, prisons and retailers for the safe keeping of evidence, money and valuables.
6) Speed of host machine adjusted by frequency conversion
7) With Folding device,Adhesive tape adding device
8) Material tension is automatically controlled through magnetic powder
9)control system to preset the length of pouch, length measurement display and automatic stop function when reaching the set length.
10) Adopts Servo motor

Main technical parameters:

Model	RFKD-800
Max. Dia. of feeding reel	Ф800mm
Film thickness:	0.03-0.1mm
Bag width	100mm-450mm
Max bag length	750mm
Speed	120pcs/min
Total power	7 KW
Weight	2500KG
Overall dimension(L*W*H)	7000x 3200x2000mm

---
