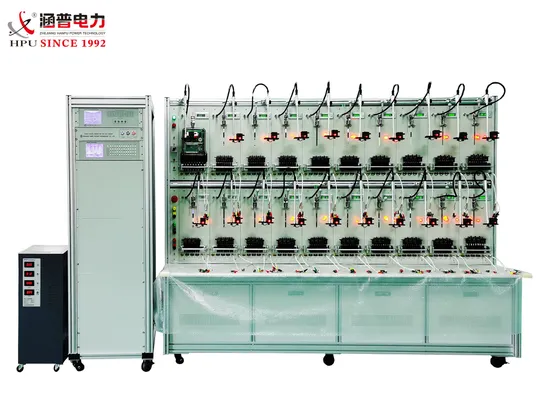

Three Phase (3pH) Electrical Energy Meter Test Bench with 20 Meter Positions

Product Description

Product Description
Three Phase Energy Meter Test Bench is accords with the standard of "IEC 521, 1036, 687and 145 for mechanical meters, IEC 62052-11,IEC 62053-11, 21, 22, 23 for static electronic meters. This bench can be used to test three phase energy meter (up to 0.5 class).According to the different requirements of customers such as Meter Manufacturer, and provincial metrology centers, we can provide customized, combined flow design, installation, commissioning, and full-time operation and maintenance services with single-phase, three-phase meter test bench.

Items		PTC-8125M	PTC-8125E	PTC-8125H	PTC-8320D	PTC-8320E	PTC-8320H	PTC-7100
Basic functions	Basic error	○	○	○	○	○	○	×
	Creeping test	○	○	○	○	○	○	×
	Starting test	○	○	○	○	○	○	×
	Standard deviation	○	○	○	○	○	○	×
	Constant test	○	○	○	○	○	○	×
	Meter constant	○	○	○	○	○	○	×
	Influence test	○	○	○	○	○	○	×
	No load test	○	○	○	○	○	○	×
	Max demand test	○	○	○	○	○	○	×
	Repeat test	○	○	○	○	○	○	×
Multi-functions test	Day time error	☆	☆	☆	☆	☆	☆	×
	L/N switching	☆	☆	☆	☆	☆	☆	×
	Communication test	☆	☆	☆	☆	☆	☆	×
	Power consumption test	☆	☆	☆	☆	☆	☆	×
	High voltage	×	×	×	×	×	×	○

Detailed Photos
Certifications
Packaging & Shipping
Company Profile
Hanpu, founded in 1992, is a high-tech enterprise integrating R&D, manufactures and sells devices and systems for producing, measuring, testing and calibrating electric/kwh energy meter. Currently, over 400 employees are committed to precision of the highest quality, in total four R&D centers in Haiyan, Suzhou, Ningbo and Xiamen, and has a domestic first-class electric automation R&D team and independent intellectual property rights.Utilities, test laboratories, national metrology center and electric energy meter manufacturers are among our customers worldwide.Professional Service at the decisive moment is important. You can choose different levels of accessibility including on-site and remote support. We offer spare part , maintenance and reliability checks and warranty extensions.

---
