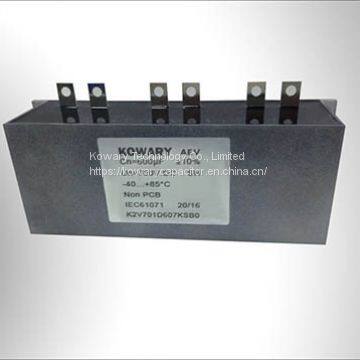

Power Electronic Capacitor AEV E-Viecle

Product Details

Product Description

Product Description
■GENERAL TECHNICAL CHARACTERISTICS
Reference standards IEC 61071
Dielectric Polypropylene film
Construction Dry construction, Non-inductive type
Case Aluminum case
Leads Threaded insert M8 or M10, Lead screw M8
Dissipation factor ≤2.0×10-3 Measured at 100 Hz and 20±5℃
Self inductance ≤100nH
Life expectancy 30,000 hours at UNDC and 70 ℃(Hot-spot temperature)
Dielectric strength 1.5×Urms applied to 10s at 20±5 ℃
Test voltage terminal to case 3KVAC/50Hz for 60s
Insulation resistance(IR*CN) ≥ 5000s but need not exceed 30GΩ, after 1 minute of electrification at 100Vdc (20±5℃)
■ELECTRICAL SPECIFICATION Unit: mm
Remark: 1. *** Internal code.
2. Customization for special specification and requirement is available.

---
