Hydraulic PLC Rubber Roller Conveyor Belt Cutting Machine with Cross Cutter

Product Description

Hydraulic PLC Rubber Roller Conveyor Belt Cutting Machine with Cross Cutter
Name: Rubber Cutting Machine
Model: QJ1600
Description of PLC hydraulic rubber across cutting machine:
1. Main structure and working principle of the equipment
1.1: The equipment is composed of oil station, solenoid valve, oil cylinder, cutter plate, cutter, servo motor, linear guide rail, ball screw and other important modules.
1.2: The equipment adopts hydraulic power cutting knife and servo motor automatic feeding process to complete the cutting function. It can cut relatively thick rubber materials, up to 100mm thick.
1.3 The Rubber Cutting Machine has high cutting precision with push-plate device
2. Main technology and parameters
2.1: The length of the cutting is adjustable, the feed speed is adjustable, the stroke of the cutting tool is adjustable up and down, and the cutting strip is diversified: half cutting and thirty-seven breaking can be manually adjusted
2.2: Cutter specifications of length:800mm,1000mm,1200mm, 1400mm,1500mm,1600mm,1800mm,2000mm etc.
Technical parameters:

Cutter length	Cutter pressure	Main motor power	Stroke mode	Control type
1600mm	80T	7.5kw	Double slide	PLC
Cutter up and down stroke	Reducer	Max.cutting thickness	Push plate stroke	Push plate material
100mm	1:5	50mm	3200mm	Aluminum profile
Minimum fixed length cutting width	Power supply	Driving Method	Feeding mode	Servo power
1mm	Optional	Transmission shaft	Ball screw	5.5kw

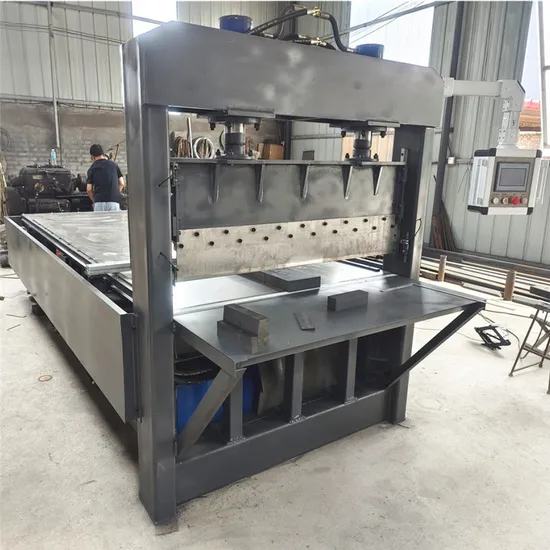

Product display of rubber across cutter
Material sample testing:
Payment and delivery:
Delivery time: 35-45 days after receipt of deposit
Payment: 40% by T/T for deposit, 60% the balance by T/T must be paid off before delivery
Warranty: 12 months from the date of Bill of lading.
We can provide you with a detailed operation manual.
Waiting for your inquiry if you need these machines exactly.
Hope we can establish a good business relationship with your company.
Thanks for your time!

---
