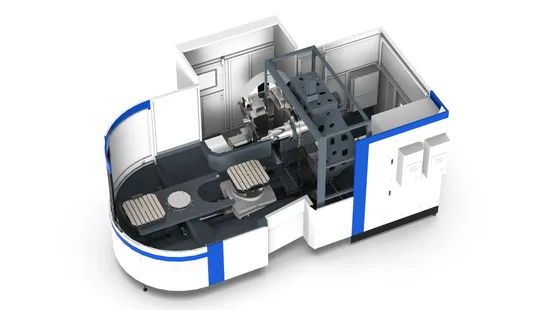

High End Multi-Function Horizontal Machining Center PWM-63/PWM-80

Product Description

Features: The machine integrates functions of milling, boring, drilling (drillingreaming,expanding),tapping,etc.
The international CNC numerical control system is adopted.
The main machine adopts the advanced T-shaped body structure, gantrycolumn, hanging-structured spindle box, with high rigidity, high precisionretention, suitable for rough machining and finish machining of precisebox parts.
It is widely used in the automotive, rail transit, aerospace, valves, miningmachinery and other machinery industries.

Model No.	PWM-63		PWM-80
Travels
X-Axis	1000 mm		1300 mm
Y-Axis	900 mm		1100 mm
Z-Axis	1000 mm		1200 mm
Spindle
Maximun speed	6000 rpm		6000 rpm
Spindle driven motor	17/20.4(S1/S6-60%) kw		17/20.4(S1/S6-60%) kw
Spindle Taper	BT50/SK50/CAT50		BT50/SK50/CAT50
Feed
Moving speed	24 m/min		24 m/min
Cutting programmable feed	15000 mm/min		15000 mm/min
Positioning accuracy	0.012 mm		0.012 mm
Repeat positioning accuracy	0.008 mm		0.008 mm
Acceleration	0.2 G		0.2 G
Tool Magazine (Optional)
Type	Chain type		Chain type
Capacity	40 pcs		40 pcs
Maximun tool diameter	ø220 mm		ø220 mm
Tool-to tool time	5.5 sec		5.5 sec
Cover
Machine protection	Full enclosure		Full enclosure
Guideway protection	Full enclosure		Full enclosure
Mechanical Specification
Required pneumatic pressure	6 kg/cm²		6 kg/cm²
Machine height	3450 mm		4000 mm
Machie width	3950 mm		4800 mm
Machine length	7150 mm		7150 mm
Machine Weight	19 t		25 t

Workshop

FAQ

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
