US$18,000.00-20,000.00
|
1 set
(MOQ)
|
Basic Info.
Guide Rail
Horizontal Guide Rail
Controlling Mode
Artificial
Certification
CE, ISO 9001
Tailstock quill diameter
100mm
Tailstock quill travel
260mm
Tailstock quill taper
MT6
Transport Package
Wooden Case
Specification
swing 1000-1600mm
Production Capacity
1000 Sets/Year

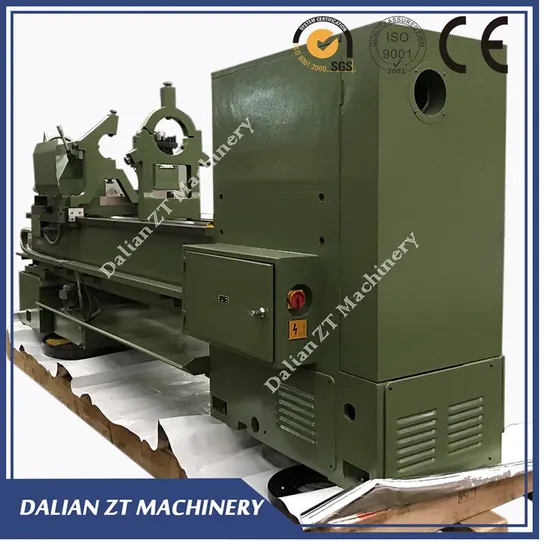

Product Description
| Model | Unit | CW6163C
CW6263C | CW6180C
CW6280C | CW6193C
CW6293C |
| Swing over bed | mm | 630 | 830 | 930 |
| Swing in gap | mm | 890 | 1090 | 1190 |
| Swing over cross slide | mm | 350 | 550 | 650 |
| Distance between centers | mm | 1000,1500,2000,3000,4500,6000 |
| Effective length in gap from face plate | mm | 300 |
| Spindle nose | | C11 or D11 |
| Spindle bore | mm | 105,130 (optional) |
| Spindle speed/Step | rpm/steps | 10-800/18 |
| Cross slide travel | mm | 480 |
| Top rest travel | mm | 225 |
| Rapid traverse | mm/min | Z:3240mm; Z:1870mm |
| Tailstock quill diameter | mm | 100 |
| Tailstock quill travel | mm | 260 |
| Tailstock quill taper | | MT6 |
| Bed width | mm | 550 |
| Metric threads | mm/kinds | 1-240/53 |
| Inch threads | Tpi/kinds | 30-2/31 |
| Module threads | Mm/kinds | 0.25-60/46 |
| Diametrical pitch threads | | 60-1/2/47 |
| Main motor power | kW | 11 |
| Gross weight of machine | kg | 4200
4400
4650
5450
6500
7800 | 4400
4600
4850
5650
6700
8000 | 4500
4700
5000
5800
6800
8100 |
Standard Accessories:
3-jaw chuck; dead center; reduction sleeve, foundation bolts;
Optional Accessories:
4-jaw chuck, face place, drive plate, steady rest, follower rest, electric turret
Quality Control & Inspection before Packing
We control the assembly quality as well as control the quality of casting and parts/units to ensure the machines will be good enough from appearance to performance and stability keeping.
After testing and painting before packing, we will check all the accessories item by item.
Packing & Local Transportation & Fixing
Normally we will pack the machines with fumigated wooden cases or poly wooden case and steel pallets. When the machines are loaded into the container, fixing job will be done to ensure the sea shipment safety.
>>
