5L 10L Edible Oil Water Pet Plastic Bottle Blowing Machine

Product Description

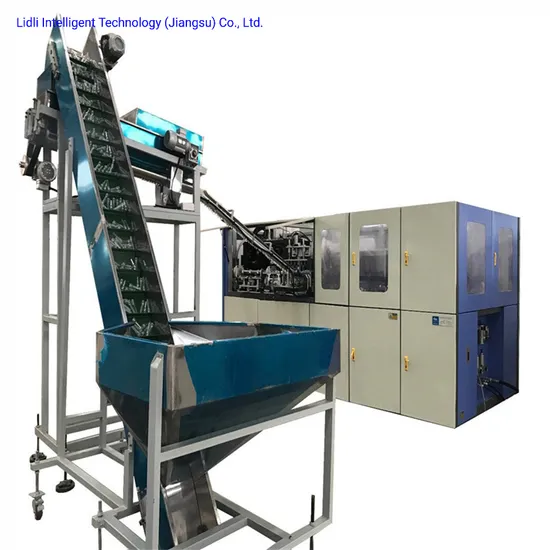

Introduction for Linear 3L 5L 7L 10L Full-auto stretch blow molding machine
Linear full-auto stretch blow molding machine is an economical full-automatic PET bottle blowing machine independently developed by LIDLI. It is economical, fast, and convenient. It can produce all kinds of bottles below 10L, including food packaging bottles, edible oil bottles, soda, and mineral water bottles, fruit juice bottles, wine bottles, cosmetics bottles, and so on.
1. Upgrade to Servo Motor Drive:
Mold Clamping System: The servo motor drives the rocker linkage, driving frame, and the bottom mold opening and closing. Reaction time is reduced to 50% compared to the traditional pneumatic model. Simple structure, running smooth, no wear, longer use life.
2. Mold fixed by drawer design, mold changeover can be easily done in a half-hour.
3. Efficiency Constant Temperature Oven:
-Use the most advanced high-frequency Infrared Lamp, increasing heating efficiency by 30%-50%.
-Each layer of the lamp is separately controlled, with an assistant ruler on a machine.
-Intelligent temperature control system.
-Temperature detector feedback to PLC automatically, PLC makes an accurate judgment and then controls circulation air in the oven. It leads to constant temperature in Oven, free from voltage fluctuations and ambient temperature. It works when large ambient temperature difference (-28~45ºC).
-Preform self-rotation System, ensure every side of every preform is heated evenly, which ensures the quality of the blown bottle. (thickness up to 4.5mm)
-Neck Cooling in Oven.
-Preform Necks are cooled by recycling water, which avoids neck deformation
Configuration for Blow Molding Machine

Part	Description	Origin	Brand
Electrical	Magnetic Sensor	Taiwan	AIRTAC
	Proximity Sensor	Korea	AUTONICS
	Air Circuit Breaker	China	CHAT
	Touch screen	Japan	MITSUBISHI
	Signal amplifying board	China	WALTON
	Switching Power Supply	Taiwan	MINGWEI
	PLC	Japan	MITSUBISHI
	Contactor	China	CHAT
	high-frequency Infrared Lamps	China	TAICHUNG
Servo Motor	Transfer motor	China	XINJIE
	Preform Feeding motor	China	XINJIE
Valves	High-Pressure Valves	USA	PARKER
	Low-Pressure Valves	Taiwan	AIRTAC
	Quick connector	Mainland of China	LIANXIN
Cylinder	Gripper	Taiwan	MINDMAN
	Sealing cylinder	Taiwan	AIRTAC
	Up & Down cylinder	Taiwan	AIRTAC
	Rotary cylinder	Japan	SMC
Mechanical	Linear Guideways	Taiwan	HIWIN

Specification for Blow Molding Machine

Bottle blowing machine
Model & Name	BS10-3
Brand	LIDLI
Overall Dimensions(mm) Length*Width*Height(mm)	Main machine:4800*1900*2400 Auto-loader: 2000*1300*3000
(Weight)	8 (ton)
No.of Cavity	3 cavities
Open stroke	260 mm
Max.Bottle capacity	10 Liter
Bottle diameter(max)	210(mm)
Bottle height(max)	450(mm)
Heating ovens	6 (unit)
Infrared lamps	72 (pcs)
Consumption power	55 (kW)
Rated power	110(kW)
Voltage	customized
Theory production(based on 10L bottle)	1800-2000 BPH

Spare Parts for Blow Molding Machine

SN.	Description	Specification	Qty.	Unit	Note
1	Hex wrench	φ14	1	piece
2	Solid wrench		1	piece
3	Monkey Wrench	Φ 50	1	piece
4	Cross Screwdriver		1	piece
5	Slotted Screwdriver		1	piece
6	Slotted Screwdriver	3MM	2	piece
7	Combination Wrenches		8	piece
8	Tool kit		1	piece
9	Quick Connector (Non-adjustable)	Φ6-M5	10	piece
		φ10-1/2	2	piece
		Φ8-1/4	6	piece
		Φ10-1/4	6	piece
		φ16-1/2	6	piece
10	T-junction	φ6	6	piece
		φ8	2	piece
		φ8	4	piece
11	Quick Connector ( straight )	Φ8-Φ6	6	piece
12	Elbow Connector (Adjustable )	Φ8-1/8	10	piece
		Φ8-1/4	4	piece
		(Φ6-M5)	6	piece
13	Elbow Connector (Non-Adjustable )	Φ10-3/8	2	piece
		Φ10-1/4	6	piece
		Φ16-1/2	4	piece
14	PU Pipe	φ6×2 meter	1	piece
		φ8×6 meter	1	piece
		φ16×2 meter	1	piece
		φ10×4 meter	1	piece
15	Sealing parts		4	piece
16	Heat Lamps		5	piece	New type
17	(Cylinder) magnetic switch		2	piece
18	Optoelectronic switch		1	piece
19	Approach switch		1	piece
20	Servo Proximity switch		1	piece
21	Supercharge screw (with O ring)		4	piece
22	High-pressure pipe (1 inch 3 Meter / containing two high-pressure joints)		4	piece
23	Supercharge sealing parts		2	piece
24	Buffer rubber of Stretching rod		2	piece
25	Buffer rubber of Stretching rod		2	piece
26	Perform holder		2	piece
27	Φ8 Clamp spring (Outside)		100	piece
28	Clamp spring of preform holder (Inner)		12	piece
29	Tools		1	SET	Complete set
30	Manual		1

---
