US$16,560.00-16,990.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Concrete Mixing Truck
Machining Process
Hydraulic
Vibrating Amplitude
0.8mm
Certification
ISO9001: 2000, CE
Actual Mixing Capacity
2.0cbm
Rotary Drum Capacity
2.3cbm
Slump of Concrete
70-260mm
Max Torque
255/1500-1800 380/1500-1800 N.M/R/Min
Min Steering Radius
4250mm
Maximum Load Capacity
3000kg
Whole Machinery Weight
6480kg
Transport Package
Nude Package
Specification
6700*2300*2900
Production Capacity
300sets/Month
Product Description
Production Description:
new price diesel mobile concrete cement truck mixer for Ghana

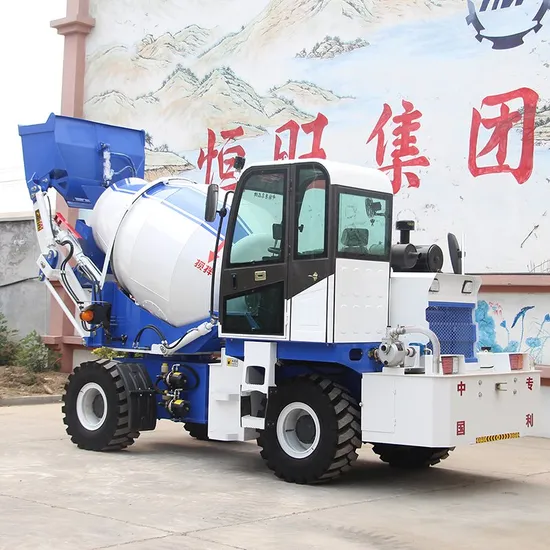

Self Loading Concrete Mixer is a multifunctional machinery which combines the transit mixer, concrete mixer and wheel loader together. It can automatically load, measure, mix and discharge concrete itself . It is very convenient for loading material, such as cement, aggregate, stone. The mixing drum and cabin could slew together through 270° .
Self Loading Concrete Mixer Advantage:
The Independent water pump is convenient to work
Independent can body motor heat dissipation, extended continuous working time
Increase the water tank to meet the needs of the water shortage environment
The 360-degree camera has a wider working field of vision
The forward tilting unloading function makes the unloading more thorough and faster
Technical Parameter
Specifications
| Unit
| Parameter
|
Model
| /
| HWJB200
|
Actual stirring capacity
| m³
| 2.0
|
Rotary drum capacity
| m³
| 2.3
|
Degree of bias
| °
| 16
|
Rotational speed
| r/min
| 10-20
|
Direction of rotation
|
| Feed:clockwise output:counter clockwise
|
Mixing drum blade
|
| Two sets of spiral blades and four sets of auxiliary blades
|
Slump of concrete
| mm
| 70-260
|
Hydraulic Power Transmission System
|
Pump model
|
| CBGV-4025
|
Hydraulic motor model
|
| BMSS-250
|
Reducer ratio
|
| 01:10
|
Water Supply
|
Tank capacity/ water supply form
| L
| 540/ automatic timing water supply mechanism with automatic timing
|
The main performance parameters of the chassis and the main performance parameters of the engine
|
Engine type / displacement
| L
| CF4B68G-Z-13B2/CF4C100T-Z-13B2
|
model
|
| Straight injection type four-stroke water-cooled supercharged diesel engine
|
Rated power
| kw/r/min
| 76KW/2400
|
Max torque
| N.m/r/min
| 255/1500-1800 380/1500-1800
|
Max running speed
| km/h
| 24
|
Min steering radius
| mm
| 4250
|
Climbing capacity
| %
| 26
|
Tire
|
| 23.5/70-16
|
Driving way
|
| 4×4
|
Weight
| kg
| 4880
|
Maximum load capacity
| kg
| 3000
|
Whole machinery weight
| kg
| 6480
|
Overall size(L*W*H)
| mm
| 6700*2300*2900
|
The wheelbase
| mm
| 2250
|
Bucket capacity
| m³
| 0.45/0.55
|
The concrete output is 2.0m3 per Batch, 12 m3 per Hour. The wide cabin and the specially designed loading arms dramatically improve visibility during casting operations. This high-productivity self loading concrete mixer is price-worth, easy to use, features excellent daily performance
Automatic feeding concrete mixer truck Product details
Construction Site
Packing:
2 units can be loaded into 40HQ Container
