Product Details
Product Description
Product Description
We have one of the most extensive inventories of ASTM A270 stainless steel sanitary tube fittings in the country. We stock multiple sizes of 3A sanitary tubing accommodating the food, beverage, pharmaceutical, or biotechnology industries. Our experienced team will assist with any questions and our expedited shipping will get the products on site quickly. We also offer a full biopharma product line conforming to ASME BPE for maximum purity.
Stainless steel sanitary weld fittings are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Shaw Stainless offers weld fittings in 304 and 316L stainless in a variety of sizes. Sanitary Weld FittingsSanitary Weld Fittings
- Types: Adapters - Caps - Crosses - Elbows - Laterals - Reducers - Stub Ends - Tees - True Wyes - U-Bends
- Sizes: 1/2" - 8"
- Grades: 304 - 316L
- Thicknesses: 1/2" - 3": .065 - 4": .083 - 6" - 8": .109
sanitary tubing that exceeds ASTM A270 S2 and 3-A specifications. It is manufactured from the finest quality stainless steel materials made exclusively to We melt criteria.

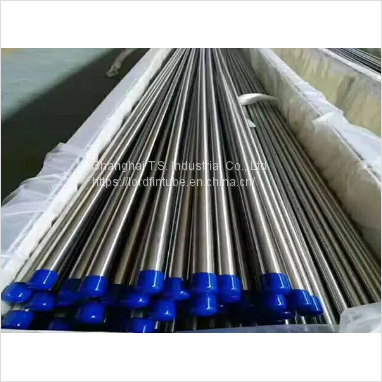

We offer industry-leading welded sanitary tubing along with technical expertise and unmatched service before and after the sale. We stock all standard sanitary tubing sizes ½ – 8 inch OD (12.7 – 203.2 millimeter OD) in 20-foot (6.1-meter) lengths.
Sanitary Stainless Steel Tubing For Dairy, Food, Beverage, and Other Sanitary Processes
Our sanitary tubing exceeds ASTM A270 S2 and 3A specifications and most user specifications. It is manufactured from the finest quality stainless steel materials made exclusively to the We melt criteria and formed by the We process to assure weld seam integrity and industry-leading ID and OD finish to the low Ra values demanded by We’s customers. We lead the industry in manufacturing the highest quality welded sanitary tubing, backed with technical expertise, advanced manufacturing and polishing capabilities, and unmatched service before and after the sale.
All standard sanitary tubing sizes are available in 1/2" (12.7 mm) to 8" (203.2 mm) OD in stock 20' (6.1 m) lengths.
Specification
Tubing shall be Sanitary Stainless Steel Tubing. The surface finish is 20 μ-in Ra (0.5 μm) ID, 30 μ-in Ra (0.8 μm) OD maximum measured per ASME/ANSI B46.1 with the profilometer reading at 90 degrees to the major polishing pattern.
Materials
m 304L & 316L available from stock.
Mechanical Tests
To ensure the highest surface quality in all of our sanitary tubings, We go beyond the requirements of ASTM A269 and A270 by performing the full battery of ASTM bend and deformation tests required by ASME SA249 as well as additional deformation tests developed by us. The tests, combined with specific raw material requirements, Eddy Current testing at the tube mill, and tighter OD and wall tolerances allow us to provide a more consistent superior quality product.
Annealing
m Hydrogen bright annealed in line to 1900°F (1040°C) minimum and rapidly quenched.
Surface Finishes*
Surface finish is 20 μ-in Ra (0.5 μm) ID maximum, 30 μ-in Ra (0.8 μm) OD maximum surface roughness measured per ASME/ANSI B46.1 with the profilometer reading at 90 degrees to the major polishing pattern. Our polishing techniques result in surface finishes that lead the industry.
All tubing is printed with size, gauge, alloy, ASTM and ASME specifications, heat number, and date of manufacturing for full traceability.
Packaging
As a final step in maintaining purity standards, our A270 S2 tubing is packaged using protective 2 mil poly sleeving along with air-tight plastic end caps. The tubing is then placed in triple-walled boxes for maximum protection during shipment. Another packaging is available on customer request
Sanitary Stainless Steel Welded Tube and Seamless Pipe Fitting
We can produce sanitary pipe and seamless pipe with DIN11850, 3A, SMS3008, ISO1127, BS4825-1, ASME BPE, and GB/T17395 standards. and polished as client's requirements.
We provide 3.1B certification of EN1024 for all steel materials.
Surface Qualities
- 180 Grit
- 240 Grit
- 320 Grit
- 420 Grit
- unpolished
Any questions, be free to contact us, we are a professional manufacturer in this field for more than 10 years. We will reply to you within 24 hours. We are here waiting for your Sincere cooperation.
We have been a professional manufacturer and sales for high precision sanitary valves, pipe fittings, pipe connecting fittings, precise forging, forged valves, OEM forging parts ect. Which use for food, beverage, pharmacy, biology engineering, water treatment cosmetic, petroleum, and chemical industry area, etc. Its advantages are forging, heat treatment, and machining.
We have many many testing equipment and instruments. Which are dimensional measuring machines, spectroscopic analysis equipment, hardness equipment, optical instrument, etc.
We have the best team of experts in management and technology. We design and produce our products to BPE, DIN, SMS, 3A, IDF, RJT, ISO and BS, etc standards strictly. We test each step from raw material to finished products. They avouch us to control the material quality and finished products quality.
The high-precision multi-roller machine currently used by our company is the advanced production equipment that produces stainless thin-wall flawless Industrial hydro-pipes. The minimal diameter p,μm, Ra0. 8 of roughness, after being cold-rolled, internal diameter μm of Ra0. 2-0. 4μm, Grade 304.104L. 316. 316L. 321, behind the polishing, accord with GMP pharmacopeia request, can substitute the import products, used in petrochemical
Industry, electricity, nuclear energy, chemical fertilizer, boiler, light textile, paper-making food, dairy products, make wine, pharmacy bioengineering, etc.
Extensively each China GB, international ISO, German DIN, European IDF, U. S. A. 3A, and Japan JIS standard require. So far quality control systems ISO9001 and Safety "CE" certification and SGS had gotten through.
