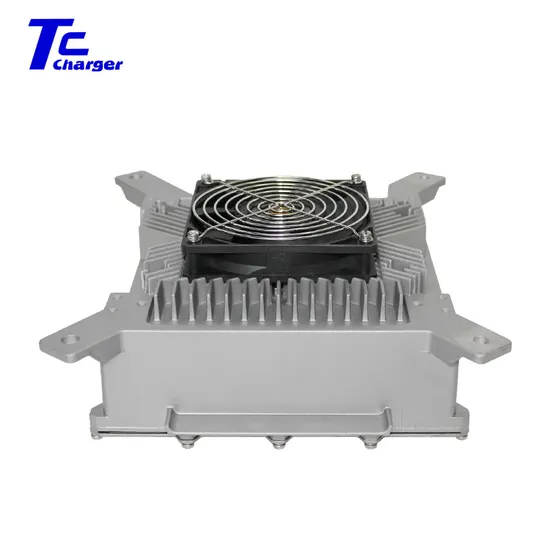

Tc HK-Lf-312-20 EV on Board Charger with Air Cooling 6.6 Kw Charger EV Car Charger

US$900.00
1-20 Pieces
US$850.00
21-99 Pieces
US$800.00
100+ Pieces

Basic Info.

Model NO.
HK-LF-312-20
Usage
Electric Vehicle
Interface
Other
Color
Silver
Input Voltage
AC90V~264V
Product Name
on Board Charger
Frequency
45Hz~65Hz
Mechanical Impact and Vibration Grade
QC/T 895-2011
Protection Grade
IP67
Type of Cooling
Enforce Air Cooling
Output Voltage
312V
Output Voltage Range
110~440V
Output Current
20A
Output Power
6600W@220VAC 3300W@110VAC
Baud Rates
250K or 500K
Transport Package
Carton
Specification
198(length) x 244(width) x 95(height)(fan-cooled)
Trademark
TC charger
Origin
China
Production Capacity
1000PCS/Month

Packaging & Delivery

Package Size
198.00cm * 244.00cm * 95.00cm
Package Gross Weight
5.500kg

Product Description

Product Description
Basic Specification Protection grade IP67
Input voltage range AC90V~264V Operation temperature - 40ºC~85ºC
Input current 32A Storage temperature - 40ºC~105ºC
Frequency 45Hz~65Hz Charging control CAN or Enable
Power factor ≥0.99 Size 198(length) x 244(width) x 95(height)(fan-cooled)
Efficiency at full-loading ≥93% Protection Output over-voltage, over-current, short-circuit, polarity reverse, input low-voltage, input over-voltage, over-temperature
Mechanical impact and vibration grade QC/T 895-2011 Cooling way Enforce Air Cooling, liquid-cooling

Accessories
Product Parameters
OBC 6.6KW
Model Type of cooling Output voltage Output voltage range Output Current Output power Net Weight (kgs) Gross Weight (kgs) Dimension (CM)
HK-LF-108-64 Enforce Air Cooling 108V 70~177V 64A 6600W@220VAC 3300W@110VAC 7.6 8.6 39.5*33.5*18.5
HK-LF-144-46 Enforce Air Cooling 144V 95~202V 46A 6600W@220VAC 3300W@110VAC 7.6 8.6 39.5*33.5*18.5
HK-LF-312-20 Enforce Air Cooling 312V 200~450V 20A 6600W@220VAC 3300W@110VAC 7.6 8.6 39.5*33.5*18.5
HK-LF-540-12 Enforce Air Cooling 540V 400~680V 12A 6600W@220VAC 3300W@110VAC 7.6 8.6 39.5*33.5*18.5
