Factory Price Feldspar Barite Fluorite Mica Dolomite Pyrophyllite Mineral Phosphorite Marble Ceramics Grinding Ball Mill for Rock Powder Grinding

Product Description

Product Overview

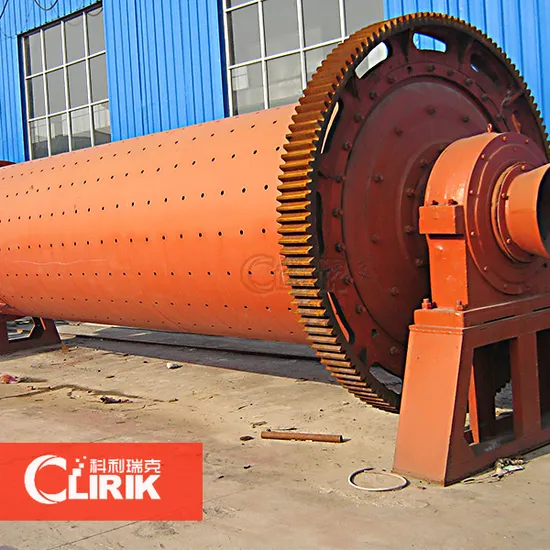

Ball mills/ball mill machine/ball mill grinding description:
Ball mills are the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.

This ball mill machine changes the intrinsic grinding mill structure. Its body and ground plank are an integral whole. So when fixing, it can be lowered on a plane surface once only. Use double tiered roller axletree with centripetal spherical surface as the support of the host axletree can reduce energy cost by 30%. The intrinsic grille pattern forcing evacuation is instead by over fall pattern controlling one. This can improve the milling of the granule and the quantity dealt with is reduced by 15-20%.
Ball mill working principle:
The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Ball mill/ball mill machine/ball mill grinding features&advantages:
1. high production capacity and crushing ratio.
2. low power consumption, uniform particle size.
3. simple structure, easy to operate.
4. low investment cost, big profit.
5. perfect services, both before-sales servies and after-sales services. Ball mill/ball mill machine/ball mill grinding Packing & Shipping
Packing: Conventional Packaging suitable for long distance transportation.
Shipping: 10-30 working days after recieving the deposit of the devices.
Ball mill/ball mill machine/ball mill grinding Product Parameters

Model	Cylinder rotary speed (r/min)	Loading ball weight (t)	Input size (mm)	Discharge size (mm)	Capacity (t/h)	power (kw)	Weight (t)
900×1800	39	1.5	≤20	0.075-0.89	0.8-2	18.5	4.6
900×3000	39	2.7	≤20	0.075-0.89	1-4	22	5.6
1200×3000	36	3.5	≤25	0.074-0.4	1.6-5	37	12.8
1200×4500	32	5	≤25	0.074-0.4	1.6-5.8	55	13.8
1500×3000	27	7.5	≤25	0.074-0.4	2-5	75	15.6
1500×5700	28	12	≤25	0.074-0.4	3.5-6	130	24.7
1830×3000	25	11	≤25	0.074-0.4	4-10	130	28
1830×6400	24	21	≤25	0.074-0.4	7-16	210	34
1830×7000	24	23	≤25	0.074-0.4	8-18	245	36
2100×3600	23	19	≤25	0.074-0.4	10-36	210	46
2200×4500	21	27	≤25	0.074-0.4	12-23	280	48.5
2200×6500	21	35	≤25	0.074-0.4	14-26	380	52.8
2200×7000	21	35	≤25	0.074-0.4	15-28	380	54
2200×7500	21	35	≤25	0.074-0.4	15-30	380	56
2400×4500	21	30	≤25	0.074-0.4	18-45	320	65
2400×8000	20	36	≤25	0.074-0.4	20-48	410	81
2700×3600	21	39	≤25	0.074-0.4	19-75	400	83
2700×4000	20	40	≤25	0.074-0.4	20-78	400	85
2700×4500	20	48	≤25	0.074-0.4	22-85	430	89
3200×4500	18	65	≤25	0.074-0.4	29-140	800	137
3200×5400	18	81.6	≤25	0.074-0.4	30-180	800-1000	146
3600×4500	17	88	≤25	0.074-0.4	35-210	1000	190
3600×6000	17	117	≤25	0.074-0.4	38-240	1250-1500	220
3600×8500	17	144	≤25	0.074-0.4	45-260	1800	260

Other Products Offered

Company Profile
Company information:
Shanghai Clirik Machinery Co., Ltd. is located in Pudong New District, Shanghai, China, which is specialing in manufacturing grinding mills, Raymond mills, crushers and other associate accessories with decades experience. We have strong and professional technical and sale team. Customers' satisfaction is our final and forever pursuing.
Our services
Pre-sale service:
1.Clirik provides a variety of mining equipment for you to choose from.
2.Clirik will recommend suitable production lines and grinding equipment to you according to your site.
3.Clirik customizes the logo and color of the grinding equipment according to your company image.
4.Clirik provides third party inspection to ensure the quality of your grinding equipment.
After-sales service:
1. Clirik provides you with online installation and use videos.
2. Clirik will provide you with technicians to install and debug the grinding equipment.
3. Clirik trains you the technicians who use and maintain the grinding equipment.
4. Clirik provides you with a one-year warranty and lifetime service for the grinding equipment.
Our Certificate
Our Exhibition
Customer visiting
FAQ
1. What advantages does your ball mill have?
The main advantage of our ball mill over other kinds of mills is that you can grind a friable or crystalline material to fine average particle size and classify in a very narrow particle size range at the same time.

2. What particle size range does your ball mill produce?
Typically the Clirik ball mill will grind friable or crystalline materials down to the 0.075 -0.4/0.89 mm average particle size range. Particles larger than 10 microns are generally hard-to-fracture polymers such as toner compounds or hard waxes, and some organic materials, but if a larger size is wanted, many products can be ground larger than 10 microns by reducing power to the mill or by increasing the rate of feed. Some products are simply polished to remove sharp edges by running at elevated feed rates with low grinding pressure, a process that changes how the material compacts.

---
