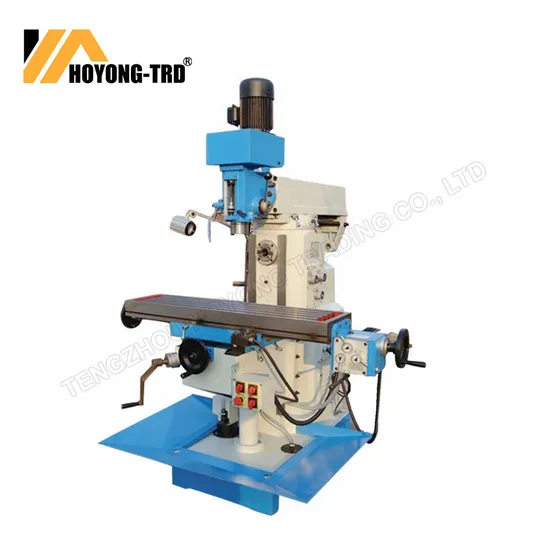

Precision Vertical and Horizontal Drilling Milling Zx6350A Zx6350za Zx6350c Zx6350d Zx6350z

US$4,000.00-6,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
ZX6350A ZX6350ZA ZX6350C ZX6350D ZX6350Z
Type
Worktable Milling Machine
Object
Tool
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
Program Control
Automatic Grade
Automatic
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Layout
Vertical
Number of Shaft
3
Hole Diameter
<50mm
Transport Package
Plywood Case
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84595900
Production Capacity
10 PCS/Month

Product Description


MILLING DRILLING MACHINE FETARURES:
1.small,flexibility
2.X ,Y axis power feed
3.Vertical and horizontal multifunctional drilling and milling machine
4.Gear drive milling head
5.Three axis hardened treatment.
SPECIFICATIONS:
MODEL ZX6350C ZX6350Z
Max.drilling dia(mm) 50;30 50;30
Spindle taper MT4;R8;ISO30 MT4;R8;ISO30;ISO40
Max.vertical milling dia(mm) 25 25
Max.boring dia(mm) 120 120
Max.tapping dia(mm) M16 M16
Distance spindle to table surface(mm) 100-480(8) 140-490(8)
Spindle speeds range(rpm)(steps) Vertical 115-1750(8) 60-1500(8)
Horizontal 40-1300(12) 40-100(12)
Spindle travel(mm) 120 120
Table size(mm) 1120X280;1000X280 1120X280;1000X280
Table travel(mm) 600X260 600X260
Motor(KW) Vertical 0.85 1.5
Horizontal 1.5/2.2 2.2
N.W/G.W(kgs) 1200/1350 1200/1350
Overall dimensions(mm) 1352x1285x2130 1352x1285x2130
