50, 000 Liters LPG Gas Tank Semi Trailer LPG Tanker for Gas Transport

Product Description

Product Description
Product Parameters

Dimension of semi trailer
Tare Weight of LPG Trailer	11500KGS
Pay Load	25000KGS
Overall Length	11400mm
Overall Width	2480mm

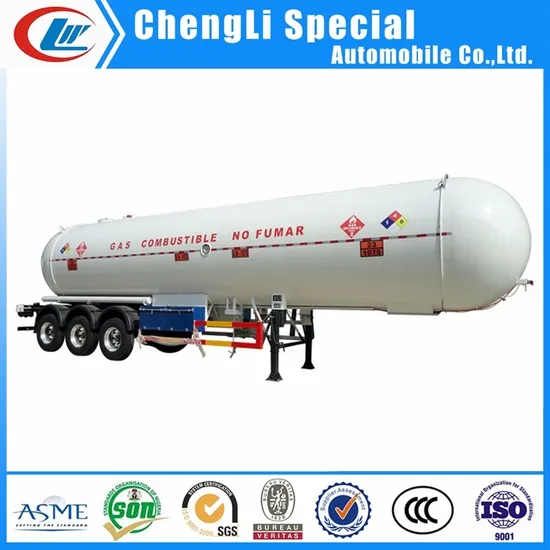

Photo for reference, finial product can be made according to exact requirements lpg tank trailer
Tank
Transporting Media		Dimethylmethane, Liquid Ammonia, Liquid SO2, LPG,Butane
Shape		Round Shape semi trailer
Total Volume(m3)		56CBM 80cbm 100cbm 50cbm 120cbm 20cbm
Tanker Body Steel Sheet		Q235A/14mm semi trailer
End plate		Q235A14mm, by punching
Parts for Tank
Manhole cover		3 sets of 500mm/Q235 manhole fixed on top of Tank, with breather valve
Unloading valve		2-3 sets of DN80 fixed at button of Tank
Pipeline at button of tank		4"seamless steel tube/Q235
Labeling system		Oil Type Indication
Anti-static electricity system		pulling, wire carrier, sheet copper (6 sheet-standard layout)
Other Parts of semi trailer
Ladder		1 unit at front of Tank
Guard on top of Tank		Zinc galvanized -guard-net
Oil hose box		Circular single hole tube, 1 unit on each side
Oil hose		2 unit, 3" x 6m size in black rubber
Side guard		cross bar-structure
Rear button guard		Fixed type
Work tank deck		Box type
Fire extinguisher box		2 unit at the back of each side
Mud guard		Steel structure in trapezoid form
Lights and wire		24V, 7 coils with lights for parking, reverse, instruction, head lamp and end lamp
Chassis of semi trailer
Main Beams		Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes
Axle		3 axle
		BPW brand FUWA brand
Landing Gear		JOST Two-speed, manual operating, heavy duty landing gear
King Pin		JOST 2"standard bolt-in king pin
Suspension		German design mechanical suspension for semi trailer
Pneumatic Braking System		WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
Wheel rim		8.25R22.5 wheel rim
Tire		11R22.5 tubeless tire with one spare tire for semi trailer
Painting		Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Company Profile
We CLW Heavy Industry Co., Ltd are a professional manufacturer and exporter which is concerned with the design, development and production of more than 300 kinds of trucks, semi-trailers, and storage tanks. More details are as follows.
1. CLW Heavy Industry Co., Ltd, which was appointed by the Development and Reform Committee of China, is a famous manufacturer producing all kinds of special trucks for municipal & environmental construction, petrol & medicals, container, and semi-trailer. Nearly 15 years wholesaler experience in producing truck.

2.Our company has independent export right and has amount of clients overseas including Africa, North America, Middle East, Australia and so on.
The export turnover has reached 25million dollars.

3.Our company has good after-sales service, solid technology, flawless inspection for our dear customers.
CLW Heavy Industry Co., Ltd also provide products as follows:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck/ Water Tank Truck/ Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Selfloading garbage truck, garbage compactor truck,sealed garbage truck
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer/ skeleton trailer/ dump semi trailer/ side wall trailer/ low bed trailer/ van container trailer/ warehouse trailer, etc.)
16. Spare parts/Accessory for above products

FAQ

1. Q: How about the quality of trucks of your factory?
A: Our trucks get ISO 9001:2008 and CCC, B&V and other related certificates. The chassis and spare parts come from the original manufacturers with anti-fake label.

2. Q:How many years of your company's service, especially after-sale service?
A: CLW Heavy Industry Co., Ltd has been in this field for nearly 15 years and has strong production and distribution capability, we can produce your products in 15 working days. We offer 1 year after-sale service.

3. Q:Is there any advantages of your price?
A: CLW Heavy Industry Co., Ltd is one of the most important suppliers of Sinotruk, Shacman, Dongfeng, FOTON and FAW, which provides guarantees for reasonable price and good quality.

4. Price term: FOB, CIF

5. Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery. All by T/T, L/C.

6. Delivery time: 25 working days after payment is received.

7. Standard Steering: Left-hand drive, if you need Right-hand drives, please inform us, will make special order for you.

---
