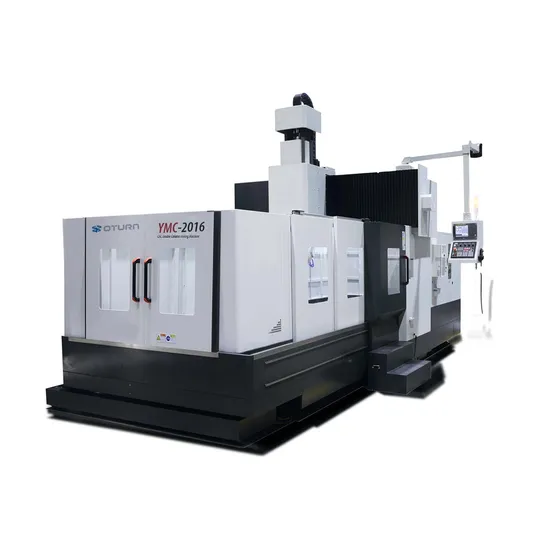

Oturncnc 3/5 Axis Vmc CNC Gantry Machining Center with 32 PCS Tool Magazine

Product Description

Product Description
High Rigidity and Long-Term Accuracy Retention
The main components of the machine tool, including the base, workbench, column, spindle box, and saddle, are meticulously analyzed using FEA (Finite Element Analysis). This method ensures design optimization, a lightweight mechanism, and exceptional rigidity. The short distance between the spindle center and the guide rail surface, combined with a minimal flipping torque, significantly enhances processing stability. Utilizing resin sand molding and high-strength, high-quality cast iron, coupled with a comprehensive heat treatment process to eliminate residual stress, the contact surfaces undergo precise manual scraping to guarantee the optimal structural rigidity of the entire machine. Our extensive product line, complete with versatile specifications, features a highly elastic automated exchange head library and a versatile vertical and horizontal tool changing system, facilitating automated, efficient, and highly productive machining performance. The modular spindle design accommodates various cutting characteristics, catering to diverse machining needs. The Y-axis employs an ultra-high rigidity roller-type linear slide rail, merging the heavy-duty cutting rigidity of hard rails with the rapid movement and low wear of linear slide rails, thereby significantly enhancing rigidity and control.
The three-axis system incorporates internationally renowned brand roller guide rails, ensuring robust rigidity and outstanding dynamic accuracy. The transmission system utilizes Taiwan-made large-diameter grinding ball screws, offering compact structure, smooth movement, low thermal elongation, and high precision. The screw support forms a stable, high-rigidity mechanical transmission system. The high-precision spindle provides constant and reliable lubrication for spindle bearings, while the standard spindle oil cooling system maintains the spindle in a stable working condition over extended periods.
Product Parameters

DESCRIPITION	UNIT	YMC-2016
Travel X/Y/Z	mm	2000/1600/720
Table Size	mm	2200×1480
Max.Table Load	kg	5000
Distance from Spindle Nose to Table	mm	200-920
Distance between Column	mm	1660
Spindle Tapper		BT50/φ190
Spindle RPM		6000
Spindle P.R	kw	15/18.5
G00 Feed Rate X/Y/Z	mm/min	15000/15000/ 10000
G01 Feed Rate	mm/min	1-8000
Machine Weight	kg	18000
Collant Tank Capicity	liter	500
Lubrication Tank	liter	4
Power Capicity	kVA	35
Air Pressure Request	kg/cm²	5-8
ATC Type		Arm type/Chain type
ATC Tapper		BT50
ATC Capicity		24(32)/40
Max.Tool dia./length	mm	φ125/400
Max.Tool Weight	kg	18
Machine size	mm	6100*3000*3400
Positioning accuracy	mm	0.008/300
Repeatability	mm	0.005/300
Min. tool change time	s	2.9
