Product Details
Product Description
Product Description
About Metal CNC Laser Cutter

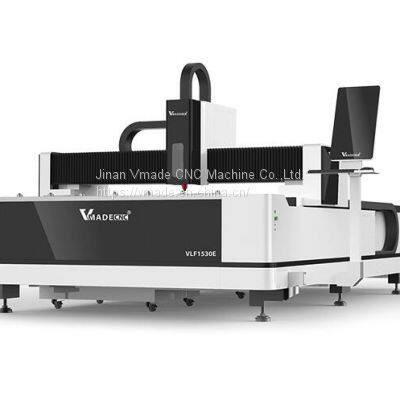

Metal CNC Laser Cutter is a laser cutting equipment specially used for cutting and processing metal materials. VLF1530E Metal CNC Laser Cutter as one classic model, widely used in many common areas of our life, Used for cutting a variety of metal plates, mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.
Core Technology:
1. The laser optical path system is stable. After thousands of vibration experiments, the laser optical path system is stable and unchanged;
2. Mechanical follow-up cutting head, pure mechanical transmission, stable and anti-interference.
How to choose the suitable Metal CNC Laser Cutter:
There are many factors to be considered in the selection of metal cnc laser cutter. In addition to the maximum size, material, maximum thickness to be cut and the size of the raw material to be processed, the future development direction, such as the technology of the products, need to be considered. The size of the largest workpiece to be processed after the modification, the width of the material provided by the steel market, which is the most economical for your own product, the loading and unloading time, etc. If you can't choose the suitable machine, please contact our engineers, we will serve you wholeheartedly!
The Fourth Generation Aviation Aluminum Gantry
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.
Without manual operation, it can focus automatically
Without manual focusing
The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.
Bigger adjustment range
Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.
Long service life
Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.
IPAD Designing Screen
Ipad design screen, has a vertical screen display, different from the traditional horizontal screen display with good response speed, higher contrast, wider view, low power consumption as well as high resolution.
In addition, it possesses high brightness levels and lower reflectivity as well as solid glass panel sturdiness and durability.
Transmission and Precision
Vmade fiber laser cutting machine is equipped with Delta servo motor, French Motoreducer and Taiwan YYC rack. The repeat positioning accuracy of the machine tool can be 0.02mm. The working life is more than 10 years.
Technical Parameters
Machine model
| LF3015E
|
Laser power
| 500W 700W 750W 1000W 1500W
|
Dimensions
| 4600*2450*1700mm
|
Working area
| 3000mm x 1500mm
|
Repeat positioning accuracy
| ±0.02mm
|
Maximum speed
| 60m/min
|
Voltage and frequency
| 220V/380V 50Hz/60Hz
|
Application Industry
VLF3015E Metal CNC Laser Cutter is good at processing on common metal items in daily life such as advertising metal letter, kitchenware, environmental protection equipment. Laser cutting machines are widely used in electronics, electrical, mechanical hardware, new energy lithium, packaging, solar, LED, automotive and other industries.
Stainless steel, carbon steel, alloy steel, copper, brass, silicon steel, galvanized steel sheet, nickel titanium alloy, inconel, titanium alloy, etc.
We are Open Type Laser Cutting Machine Manufacturer. We do OEM service to more than 50 dealers. Choose us, you can get most careful and thoughtful service!
>>
