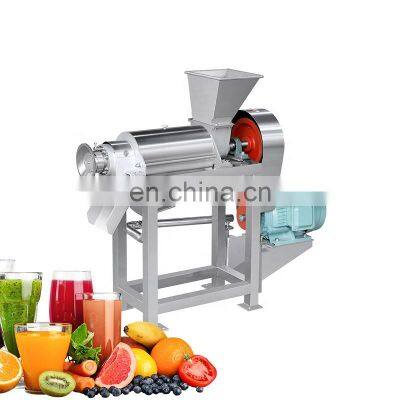

Product DescriptionIntroduction:The main component of the device is a spiral. The diameter of the spiral gradually increases along the direction of the slag outlet and the pitch gradually decreases. When the material is propelled by the spiral,the volume of the spiral cavity is reduced to form a squeeze of the material and juice.The direction of rotation of the spiral main shaft is from the feed hopper to the slag groove direction, which is clockwise.The raw material is added to the feed hopper and pressed under the advancement of the spiral.The pressed juice flows through the filter into the bottom of the juicer, and the slag passes through the annular gap formed between the spiral and the tapered portion of the pressure regulating head. Discharge, the movement of the pressure regulating head in the axial direction can adjust the size of the gap. When turning the handwheel bearing seat clockwise by hand (from the slag sump of the equipment to the hopper end), the pressure regulating head is turned to the left, and the gap is reduced.Otherwise, the gap becomes larger. By changing the size of the pores, that is, adjusting the resistance of the slag, the juice rate can be changed.However, if the pores are too small, under strong extrusion, some of the slag particles will be extruded through the filter together with the juice.Although the juice yield increases, the quality of the juice decreases relatively.Therefore, the size of the pores should be determined according to the specific process requirements of the user. SpecificationModelGD-0.5GD-1.5GD-2.5Power(Kw)1.5411Capacity(t/h)0.51.52.5Dimension(mm)1080*340*9001280*520*13401300*700*1520Packing size(mm)1160*440*9201450*650*12001700*720*1600NW(kg)83250465GW(kg)102310578Features:1.This is a kind of spiral advancing extrusion.2.There are whole stainless steel and inner stainless steel type.3. It can make vegetable and fruit juice.4.One outlet juice,one outlet fruit&vegetable pulp.5.Processing material is vegetable&fruit which is crushed into not more than 2*2cm size.6.We can supply you with different Filter screens according to your needs on the holeDiameter.Product DetailApplication:This machine is suitable for squeezing pineapple, apple, pear and other fruits; also suitable for crushing mulberry, grape, orange, orange and other berries as well as for pressing tomatoes, ginger, garlic, celery and other vegetables.FAQ1: What are your advantages compared with your competitors?With rich industry experience and strict Product Quality Control systems, we provide:(1) High-quality and stable machine(2) High-quality customer service and after-sales service with prompt response(3) Fast and timely delivery2: Are you manufacturer?Yes, we are manufacturer with more than 10 years' experience, and focus on the production of such machinery.3: Do you have English Manual for each machinery?Yes. The instruction manual, the test report and other Data Sheets related shall be provided by us.4.Can I print my Logo on the machine?Yes, sure. We can provide professional customized logo services for customers.5: How does your factory do regarding quality control ?Quality is priority.We always attach great importance to quality control from the very beginning to the end of the production.Every product will be fully assembled and carefully tested before it's packed for shipment. 6.Do you provide any recipes for the product?Yes, we will provide a basic recipe. And clients can add different color and flavor on that base.Packaging & Shipping1.Install waterproof membrane to reduce dust and water pollution.2.Standard wooden boxes are used as outer packaging to reduce bumps in international transportationDelivery TimeFor stock type, we can send within 48hrs after confirming order.For customized type, delivery date need to be negotiated before taking order.Company ProfileRelated ProductOur Service1. 24 hour communication service 2. Fast logistics will provide you a smooth delivery service 3. One-year warranty and lifetime technical support 4. New design or product recommendation 5. Attend international Fair to negotiate with customer face to face 6. offer official invitation if you come to China 7. Reception serviceļ¼help you to book good hotel
>>
