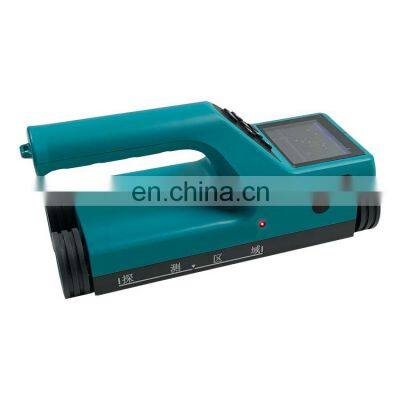

GTJ-R800 Integrated Rebar Scanner Concrete Rebar Scanner

Product Description

Product Description
Product Usage and Features
R800 Integrated Rebar Detector
Usage:
The integrated rebar detector is a portable non-destructive testing instrument, which are mainly used for detecting the internal reinforcement position, the protective layer thickness, reinforcement spacing and diameter of rebar.
It is characterized in coil structure design, faster speed, higher accuracy, stronger.
It can tests thickness of concrete cover and rebar diameter location.
GTJ-R800 Integrated Rebar Scanner can accurately draw the distribution map of the whole rebar, to provide test data with high precision and high speed.
Features:
1.Integrated design, small in size and easy to carry.;
2.Thickness detection mode is intuitive, showing thickness and steel spacing at the same time;
3.Thickness detection mode can automatically store thickness and spacing, which greatly improves the detection efficiency;
4.The waveform scanning mode also shows the thickness and spacing of the rebar protective layer;
5. 2.8 inch high resolution color liquid crystal screen;
6. Large TF card storage capacity, intuitive and convenient transmission;
7. PC professional data analysis software, data processing and report generation can be easily completed.
Parameters

Product	Concrete cover meter rebar locator
Model	GTJ-R800
Rebar dia. setting range	6mm~50mm
Scope of rebar dia. estimation	φ6mm~φ32mm
Concrete cover test range	1~210mm
Small range	1mm~90mm
Large range	1mm~210mm
Max. allowable errors of the Protective Layer Thickness	1-80mm (±1mm)
		81~120mm (±2mm)
		121~210mm (±4mm)
Profile measurement function	Support
Mesh measurement function	Support
Waveform measurement function	Support
probe self-calibration	Support
Host parameters	Screen size: 2.8 inch Resolution: 240*320
		Volume: 220*93*110mm Weight:0.6KG
Data transmission mode	TF card; wireless cloud transmission (potional)
Power suppy	Lithium battery
Storage capacity	2000 Components *1000 Measuring points
Working environment	Temperature: -10℃ ~ +40℃ Humidity：≤ 90%RH

Detailed Images
GTJ-R800 Integrated Rebar Scanner
It is characterized in coil structure design, faster speed, higher accuracy, stronger.
It can tests thickness of concrete cover and rebar diameter location.
It can accurately draw the distribution map of the whole rebar, to provide test data with high precision and high speed.
Application
