Reliable Wireless PWM Remote Controller for DC12V Applications

Product Description

Product Parameters Transmit Rate: A fast and efficient 38400 bit/s
Transmit Power: Robust power output of <=22dBm
Adjacent channel rejection: A reliable -60dBm, ensuring minimal interference
Modulation mode: Versatile LoRa/GFSK for diverse applications
Receive sensitivity: An impressive -126dBm for superior signal capture
Real-time property: Advanced dual CPU real-time control for optimal performance
Dedicated address code: Secure and unique 16bit identification
Control distance: Exceeds 100m, providing extensive range

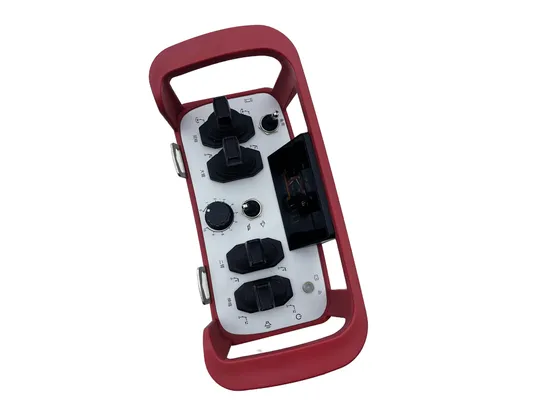

Transmitter form: Joysticks for intuitive and precise operation
Transmitter power supply: 3.7 VDC, powered by a robust 50000mAh Li-ion battery
Transmitter working current: <100 mA for efficient energy usage
Transmitter low voltage: Alerts at 2.8VDC to prevent interruptions
Transmitter fault alarm: Screen, beeper, or LED for immediate alerts
Transmitter antenna: Choose between built-in or external options
Transmitter screen (optional): High-resolution 320*240 TFT display
Receiver Power: Flexible operation with 10-30V DC
Receiver rated power: Energy efficient with <=6W consumption
Receiver fault display: LED provides clear notifications
Output contact capacity: Handles 5A/250VAC for powerful connectivity
Output interface: Choose between water-resistant contacts or heavy-duty plug-ins
Receiver antenna: External for optimal signal reception
Standard Accessories One AC-DC charger for reliable power supply
One on-board charger for convenient recharging
One USB-Type C charging cable for modern connectivity
Two Li-ion batteries for extended use
Two receiver antennas for enhanced performance
One waterproof connector cable for secure connections
One shoulder strap for ease of transport
One instruction manual for easy setup and use
One certificate ensuring quality and compliance
One output schematic for detailed electrical information
Structural Parameter Transmitter weight: A lightweight 1.05kg (without battery) for easy handling
Transmitter dimension: A compact 257mm*119*151mm (L*W*H) design
Transmitter housing material: Durable engineering plastic for long-lasting use
Receiver weight: Only 0.8kg for effortless installation
Receiver dimension: Space-saving 215mm*172mm*71mm (L*W*H)
Receiver mounting aperture: Φ6mm for easy attachment
Receiver shell material: Robust engineering plastic for durability
Working temperature: Withstands extreme conditions from -40ºC to 80ºC
Working humidity: Operates efficiently within 0-97%RH
Protection: IP65 rated, offering excellent protection against dust and water ingress
Detailed Photos

---
