Water Jet Cutting Machine with Direct Drive Pump DDP-30

Product Description

Waterjet cutting machine is made up of 4 main components: Cutting table, CNC controller, Auto abrasive feeder, Intensifier pump.
please contact me for more infomation

cutting table	model		1313	2515	3020	4020	6020	customized size
	structure	gantry water cutting platform/cantilever series cutting platform
	travel	X Axis	1300mm	2500mm	3000mm	4000mm	6000mm
		Y Axis	1300mm	1500mm	2000mm	2000mm	2000mm
	speed	Max.move speed (x axis and y axis)	6000mm/min
		Max.move speed (z axis)	1000mm/min
	Accuracy	Positing Accuracy	0.127mm
		Repeat Accuracy	±0.076mm
	Water tank maximum Loading Capacity	300Kg/m2

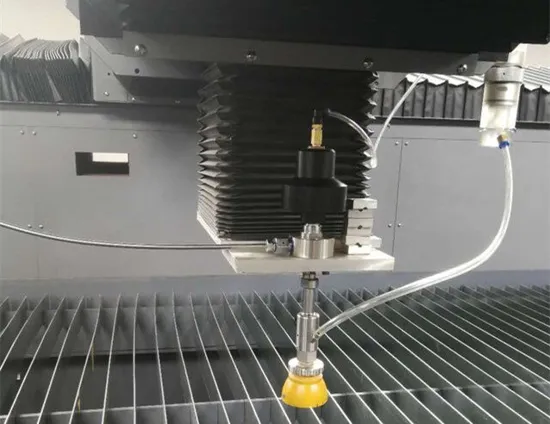

Cutting head	3 axis / 5 axis Movement : Linear motion/Rotary motion
cnc controller	15 inch LCD montior Support DXF and NC code file Software: Windows 7 Resistance of the shoch and electro-magntic
	the key function Forward & Backward processing function Even pace control function Small arcs speed auto processing function Circle processing function
	Partial and smooth processing modes
aabrasive feeder	Max. inlet air pressure : 0.2-0.4 Mpa Min. inlet air flow:0.028m3/min Abrasive capacity:170 L
	features Air valve to prevent jams and breakages Auto control with CNC auxiliary function Self sealing Slightly adjust the FLOW
intensifier pump	Reted power : 50HP (37 KW) Max.pressure : 60000psi (4137 bar) Control voltage and cuttent : 24DC,10AMPS Ambient temperature : 5-40 ºC Fuel tank capacity :114L Cooling flow : 11.4L/MIN Attenuation : 1L Long : 1473 MM Width : 1205 MM High : 1056MM
direct drive pump	Reted power : 30HP (22KW) Output pressure : 55000psi Max.pressure : 60000psi (4137 bar) Air: 80-120psi Operating voltage and power:210-240/360-420V 50HZ Ambient temperature : 5-40 ºC Min.inlet water : 60psi 1 gallon/min. Pump speed: 720 rmp Fuel tank capacity : 2.6 L Weight :700kg Shanghai yuanhong ultra-high pressure water jet technology co.,ltd is a professional engaged in ultra-high pressure water jet equipment research and development,produuction,sales,service as one of the water jet equipment suppliers.

1.YH water jet will provides technical support and maintenance training to make you fully operate the water jet cutting machine.
Well trained & experienced staff are to answer all your inquires in English of course.
2.We are a high-tech enterprise with 30 technical patents, including (CE / ISO 9001),the boss had a world-class company engineers engaged in more than 10 years, for the product we maintain lifelong high-pressure parts (Except wearing parts), the company sold more than 1680 kinds of products. Customers in more than 50 countries/5 distributors all over the world.
3.Spare parts will be supplied
YH waterjet spare parts high quality were approved by our customers. And we will give you green channel to get our spare parts in order toguarantee the machine run continues.
4. Professional technical training
· Professional technical training
· Introduction of every parts
· wear parts replacement
· Repair kits supply
· Drawing designing.
· Equipment operation

Major Products
WaterJet Spare Parts	WaterJet Cutting Head	WaterJet Cutting Pump	WaterJet Cutting Machine
Detail as follow :
60k WaterJet Intensifier Parts	87K Intensifier Spare Part	60K WaterJet Cutting Head Parts	87K WaterJet Head Parts
Direct Drive Pump Parts	50hp,60hp,100hp WaterJet Pump	60k ,87k WaterJet Intensifier Pump	WaterJet Direct Drive Pump
Abrasive Feeder System	WaterJet Controller System	WaterJet High Pressure Pipe	High Pressure Pipe Fitting
			Coupling,Elbow ,Tee,Cross ,Adapter,Insert ,Collar ,Nut

Packaging & Shipping
Certifications
Waterjet cutting machine is made up of 4 main components: Cutting table, CNC controller, Auto abrasive feeder, Intensifier pump. pls contact me any time. Welcome.

---
