US$4,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
Laser Welding Machine
Application
Biomedicine, Electronic Industry, Automotive Industry, Powder Metallurgy, Manufacturing Industry
Technical Class
Fiber Laser Welding Machine
Power Density
Deep Fusion Welding
Laser Classification
Optical Fiber Laser
Type
Portable Welding Machine
Laser Source Brand
Jpt Max Ipg
Servo Motor Brand
Yaskawa
Cooling Method
Industrial Water Chiller
Recommended Welding Thickness
0.5-3mm
Transport Package
Provided
Specification
1300*1500mm
Production Capacity
90 Sets/Month
Product Description
Introduction

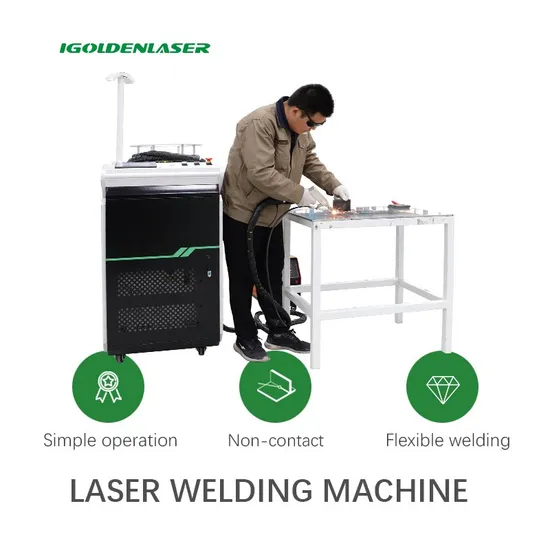

Hand-held laser welding machine, using infrared precise positioning, flexible and convenient, firm welding, no consumables, smooth and fine welding seam and not easy to deform, mainly for laser welding of long-distance and large workpieces, widely used in large and medium-sized sheet metal, cabinets, and chassis , Long-distance spot welding, full welding, continuous welding, sealing welding of inner corners, outer corners, and seams of large workpieces such as aluminum alloy door and window frames, stairs, elevators, and stainless steel furniture.
Laser welding can be applied to the welding of titanium, nickel, tin, zinc, copper, aluminum, chromium, niobium, gold, silver and other metals and their alloys, as well as steel, Kovar and other alloys of the same material. It can be applied to the welding of various dissimilar metals such as copper-nickel, nickel-titanium, copper-titanium, titanium-molybdenum, brass-copper, and low carbon steel-copper. At the same time, it is also widely used in industries such as mobile phone communications, electronic components, glasses and watches, jewelry, hardware products, precision equipment, medical equipment, auto parts, and craft gifts.
Welding system (Note: 2000W laser is a single-phase 220V voltage, currently only refers to Max laser) |
| Content | Dual axis | Single axis |
| Supply voltage | 1000W/1500W/2000W: Single-phase 220V±10%, 50/60Hz AC 3000W: Three-phase 380V±10%, 50/60Hz AC |
| Output method | Continuous light |
| Power | ≤3000W |
| Language | Chinese, English, Russian, Korean, Vietnamese, Japanese |
| Operating mode | 7 swing modes: Dot, Line, Circle, Ellipse, Triangle, Character, Half Circle | Straight line mode |
| Laser power adjustment | 10%-100% continuous gradient adjustable |
| Laser frequency adjustment | 1kHz-30kHz continuous gradient adjustable |
| Clear aperture | 9mm | 11mm |
| Swing range | 0--5mm |
| Collimated focal length | 50mm |
| Focus focal length | 150mm |
| Cleaning head picture | Figure 1 below | Figure 2 below |
| Cleaning head weight | 1KG | 0.75KG |
| Vibration lens material | quartz |
| Mirror material | quartz |
| Field lens material | quartz |
| Screen | Cabinet standard 7 inches + cleaning head standard | Cabinet standard 7 inches |
| Cable length | 10 meters (optional 15 meters) |
>>
