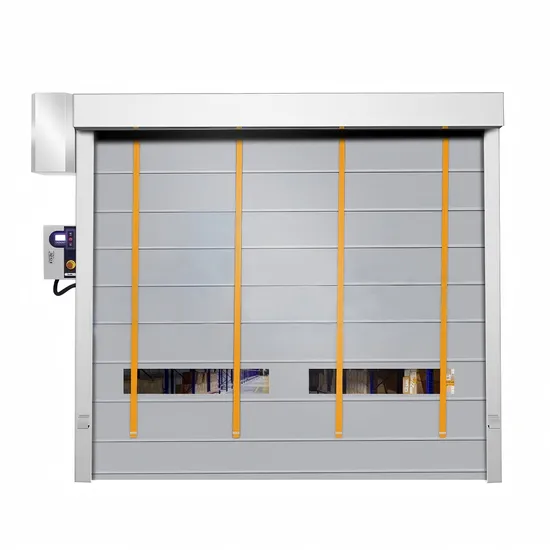

PVC High-Speed Stacking Door - Durable & Energy-Efficient for Industrial Use

Product Description

Drive and control system:
Usually equipped with servo motor drive and high-tech PLC and frequency converter control system, to ensure the stability and speed of the door body lifting, and to achieve automatic control, improve the operation efficiency.
Seal performance:
The bottom end is equipped with elastic PVC base cloth air seal, which can be closely combined with all kinds of uneven ground, effectively isolate noise, prevent dust from entering, but also has excellent insulation effect.
Wind resistance and dust prevention:
Even in windy weather, it can maintain good sealing to prevent the invasion of external dust and pollutants. Safety performance: equipped with infrared safety protection device, to ensure the safety during the operation.PVC The curtain is bright and diverse, which can be customized according to the needs of different industrial and commercial environments, which not only meets the functional requirements, but also improves the overall beauty.
It is widely used in the industrial and commercial environment that requires frequent opening and closing, and has high requirements for thermal insulation, dust prevention and sound insulation, such as warehouse, logistics center, painting workshop, shipyard, etc.Techincial Data :

PVC Quick rolling shutter door
Door curtain	Material: PVC \ polyester fiber cloth, thickness of 1.0mm
	Tensile strength: 4000N / 5CM; tear strength: 600N; peel strength: 90N / 5CM
	Color: a variety of colors are optional, customizable
Lead rail	Material: galvanized steel / aluminum alloy / SU 304, thickness: 2.0-2.5mm
	Rice noodle design on the inner and outer surface of the guide rail
	Width: 55mm-100mm
Box cover	Material: Galvanized steel / aluminum alloy / SU 304
	Plate thickness: 1.0mm-2.0mm
Open the door speed	0.8-0.3m/s, adjustable
Closing velocity	0.8-0.3m/s, adjustable
Mode of operation	Remote control, wall switch, magnet control, radar, pull rope switch, signal light
Safety performance	Infrared photoelectric sensor, airbag edge protection
Navar	The control system is controlled by PLC and frequency converter, with precise control, soft start and soft stop; with "on", ",", "," stop "and" emergency stop " buttons; multiple limit switch sensors, accurately and safely control the operation limit.
Actuating device	Servo special external hanging motor
Source	220V-380V
Wind resistance	38m/s
Gas tightness	Grade 2, and EN12426
Seal	Bottom, side, and top seal
Safe	Safe photoelectric sensor
	Proximity transducer
	Accident and fall prevention safety system

FAQ
Q: How can I find the exact price?
A:Please provide the exact size and number of doors you need.
We usually quote within 24 hours of receiving your inquiry (excluding weekends and holidays).
If you are very anxious to get a price, please send us an e-mail or otherwise contact us so that we can provide you with a quote.
Q: How do you ensure the quality of your sales?
A: For quality control, we have four testing procedures: initial, sampling, re-inspection and final inspection.
Q: What is your delivery date?
A: It depends. Usually, it takes 25-35 days after the deposit is received and all details are confirmed.
Q: What is the mode of transportation?
A:It can be transported by sea and air. Please check with us before placing your order.
Q: What are your payment terms for official trade?
A: Normally, T/T 30% deposit to start production and the balance before shipment.
Q: How do you enable our business to build long-term relationships?
A:1. We maintain good quality and competitive price to ensure our customers' interests.
2. We respect every customer as our friend, we sincerely do business and make friends with them, no matter where they come from.

---
