Auto Level with Wire Suspension Air-Damping Compensator and Stable Accuracy

Product Description

Product Description

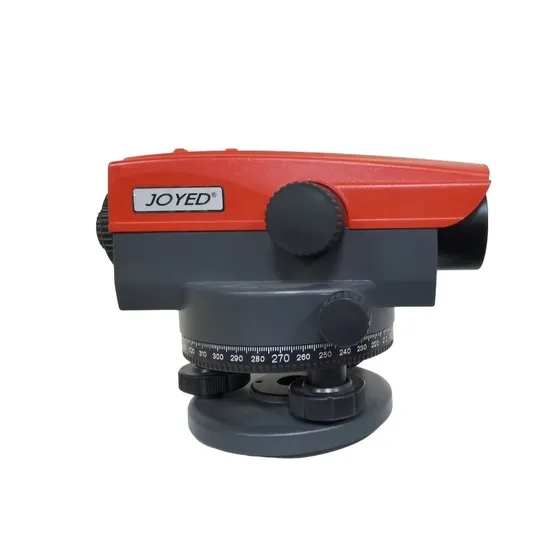

32X Magnification Auto Level
1. Standard Deviation for 1km Double-run levelling: 1.0mm.
2. Telescope image: Erect.
3. Magnification: 32X.
4. Clear Objective Aperture: 40mm.
5. Field of View: 1°20′.
6. Shortest Focusing Distance: 0.5m.
7. Stadia Multiplying Constant: 100.
8. Stadia Additive Constant: 0.
9. Sensitivity of Circular Level: 8′/2mm.
10. Graduation lnterval of Circle: 1°or1gon.
11. Compensator type: X-shaped wire suspension air-damping.
12. Working Range: ≥±15′.
13. Setting Accuracy: ±0.3″.
14. Dimensions: 195X135X140mm.
15. Weight: 1.4kg.
16. Connecting size to tripod: M16 or 5/8″.
17. INGRESS PROTECTION: IP54.
18. Handle: No.
19. Replaceable wire suspension magnetic damping compensator.

Specification

Product Name	32X Magnification Auto Level
Model NO.	DSZ32C
Standard Deviation for 1km Double-run levelling	1.0mm
Telescope image	Erect
Magnification	32X
Clear Objective Aperture	40mm
Field of View	1°20′
Shortest Focusing Distance	0.5m
Stadia Multiplying Constant	100
Stadia Additive Constant	0
Sensitivity of Circular Level	8′/2mm
Graduation lnterval of Circle	1°or1gon
Compensator type	X-shaped wire suspension air-damping
Working Range	≥±15′
Setting Accuracy	±0.3″
Dimensions	195X135X140mm
Weight	1.4kg
Connecting size to tripod	M16 or 5/8″
INGRESS PROTECTION	IP54
Handle	No

Company Profile

Who We Are
Headquartered in China, Commander group markets surveying equipment and surveying accessories. We are market oriented and depend on technology innovation to provide customers with excellent products and services.
What We Do
We sell and support major brand names of engineering supplies. We supply surveying equipment and accessories, including prisms, tribrachs, poles, tripods, staffs, laser scanner accessories and more.
Why Choose Us
We carry out strict quality control according to ISO 9001 quality management system. Excellent products have been sold to many countries and areas, we have a long term cooperation relationship with America, Europe Union, Asia, Africa and Middle East countries. We have been striving to grow and expand through many years effort, basically our products have enabled us to meet our customers diversified requirements.
Related products

FAQ
Q1: What are your main products?
A1 : Prism,Prism Glasses ,Tribrach, Prism Pole,GPS Pole,Tripod,Leveling Staff and so on.
Q2: Whats your payment method ?
A2:We accept T/T in advance,L/C at sight,Western Union,Paypal ,Secure Payment and Credit Card.For L/C payment, some countries and some models are not available.
Q3: How can you guarantee the safety of my funds?
A3:Trust is a always problem for international trade,we believe good business credit and reputation is the most important for businessman.We recommend Trade Assurance service by Made-in-China Group. We wont get the fund unless you get the product and confirm the payment.

---
