Timber Slice Band Resaw Sawmill Horizontal Wood Bandsaw Machine

Product Description

Product Description

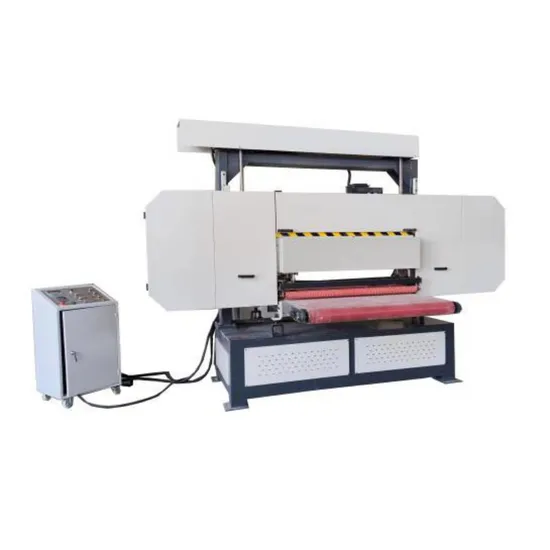

Precision Slice Horizontal Band Resaw Machine

Model	MJ350S	MJ650S	MJ800S	MJ1000S	MJ1200S
Max Process Width	350mm	650mm	800mm	1000mm	1200mm
Max Process Height	210mm	200mm	200mm	200mm	200mm
Saw Wheel Diameter	700mm	700mm	700mm	800mm	800mm
Motor Power	15KW	22KW	22KW	30KW	30KW
Feeding Motor	1.1KW	1.1KW	1.1KW	1.1KW	1.1KW
Up/Down Sizing Motor	0.37KW	0.37KW	0.37KW	0.37KW	0.37KW

Bottom Wheel Precision Horizontal Band Resaw Machine

Model	MJ400	MJ650	MJ800	MJ1000	MJ1200	MJ1300
Saw Wheel Diameter	600mm	600mm	700mm	700mm	700mm	700mm
Max. Sawing Width	400mm	650mm	800mm	1000mm	1200mm	1300mm
Min. Sawing Thickness	2mm	2mm	2mm	2mm	2mm	2mm
Max. Sawing Thickness	110mm	110mm	110mm	200mm	200mm	200mm
Motor Power	15KW	18.5KW	22KW	30KW	30KW	30KW
Feeding Motor	0.75KW	0.75KW	1.5KW	1.5KW	1.5KW	1.5KW
Machine Weight	1850kg	2550kg	2750kg	2850kg	2950kg	3200kg

Related Machines
1.MJ3210A Vertical Band Sawmill With Carriage

Specification	MJ3210A-E3000/E5000	MJ3210A-CNC3000/CNC5000
Saw Wheel Diameter	1000mm	1000mm
Max Sawing Wood Diameter	1000mm	1000mm
Saw Blade Length	7300*125*1.25mm	7300*125*1.25mm
Saw Clip And Wheel Up and Down	Electric	Electric
Main Motor Power	30 KW	30 KW
Carriage Length	3000mm/5000mm	3000mm/5000mm
Max Sawing Wood Length	3000mm/5000mm	3000mm/5000mm
Wood Grasp Clip Quantity	Manual x 4 PCS	Pneumatic x 4 PCS
Carriage Forward/Backward	Electric Type	Electric Type
Sawing Thickness Setting	Electric Type	Touch Screen
Weight	5000kg	6000kg

2.Square Timber Cutting Multiple Blade Rip Saw

Model	FM60	FM80	FM100	FM120	FM150	FM200	FM250	FM300
Process Height	0-60mm	30-80mm	40-100mm	50-120mm	60-150mm	90-200mm	110-250mm	150-290mm
Process Width	250/300/400mm
Blade Diameter	150mm	180mm	210mm	230mm	255mm	355mm	380mm	455mm
Main Motor	18.5KW*2	22KW*2	22KW*2	22/30KW	22/30KW	37KW*2	45KW*2	55KW*2
Weight	1190kg	1260kg	1420kg	1560kg	1620kg	2550kg	2580kg	2700kg

3.Log Cutting Multiple Blade Rip Saw

Model	YM150	YM200	YM240	YM285	YM340	YM400	YM430	YM480
Cutting Diameter	20-150mm	60-200mm	80-240mm	130-285mm	150-340mm	180-400mm	200-430mm	250-480mm
Blade Diameter	255mm	305mm	355mm	405mm	480mm	550mm	600mm	650mm
Main Moto	18.5KW*2	22KW*2	30KW*2	30/37KW	45KW*2	55KW*2	75KW*2	75KW*2
Weight	1570kg	1720kg	2200kg	2350kg	2650kg	3500kg	3880kg	4100kg

4.Multiple Blade Sawmill With Laser

Model	QB30-500	QB50-500	QB50-800	QB70-900
Max. Cutting Height	30mm	50mm	50mm	70mm
Max. Cutting Wood Width	500mm	500mm	800mm	900mm
Blade Diameter	160mm	210mm	210mm	255mm
Feeding Type	Belt	Belt	Belt	Press Roller
Main Motor	7.5KW	11KW	15KW	22KW
Overall Size	1320*850*1350	1350*850*1350	1350*950*1350	2200*1350*1600
Weight	400kg	510kg	730kg	1580kg

Company Profile
Our company is China leading manufacturer of woodworking machinery,we are able to offer professional woodworking machinery to customers.
Our products are mainly included wood crusher,band saw, circular sawmill, wood pallet machine, wood pellet machine, wood planer, production line and so on. We have exported our machines to more than 70 countries and regions around the world, such as Southeast Asia, North America, South America, Africa, Europe, Middle East, Australia, Russia and so on.
In order to meet different requirements of customers, we have been constantly developing and improving product technology, quality and after-sale service. And we able to customize machine according to customer requirements, so it has won the favor of many customers.
If you are interested in our machine, please feel free to contact us.
FAQ
1.What is the machine delivery time ?Delivery time is 10-15 days.2.What is the payment term ?Payment term is 30% TT advance and balance before delivery machine.3.Could the machine customized according to client requirements ?Yes, can customize according to client requirements.4.What terms of trade can provide?We accept EXW, FOB, CIF, Express Delivery.5. What is your company business scope ?Our company main sell woodworking machine, including wood crusher, wood sawmill, wood pallet machine, wood pellet machine, drying kiln, wood planer and so on.

Packaging & Shipping

---
