Waste Plastic PP PE HDPE Woven Bags Film Washing Recycling Line

Product Description

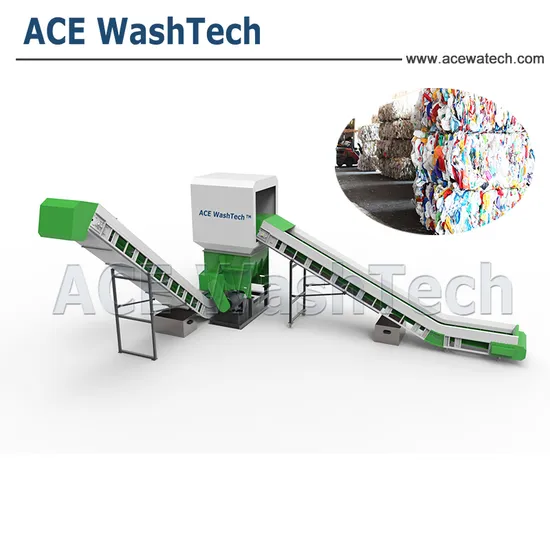

Waste plastic PP PE HDPE woven bags film washing recycling line

Recycling material of ACW washing system:
Basic data of ACW washing system:

Model	ACW500-ECO	ACW500-PRO	ACW750-ECO	ACW750-PRO
Capacity for film	450-550kg/h	450-550kg/h	750-1000kg/h	750-1000kg/h
Capacity for rigid	900-1100kg/h	900-1100kg/h	1500-2000kg/h	1500-2000kg/h
Installed power	215KW	223KW	168KW	362KW
Working power	161KW	167KW	126KW	271KW
Water consumption	0.5-2m3/h	0.5-2m3/h	0.5-2m3/h	0.5-2m3/h
Moisture of product	Less than 7%	Less than 7%	Less than 7%	Less than 7%
Operation staff	3	3	4-5	5-6
Dimension(M)	(L×W×H)22×4×8	(L×W×H)36×4×8	(L×W×H)47×4×8	(L×W×H)58×5.5×8

Specification of ACW washing system

	• High throughput, • Build-in hydraulic ram , • Variable faster ram movement, • Less space occupied than traditional shredders with horizontal rams, • Enclosed cutting chamber to prevent materials flying out, • Screen plates are made of wear-resistant steel, quick and easy maintenance.
	• Low water consumption, 95% recycled--release simple water treatment, • High-quality separation, • Pre-sorting material (steel, sands ), • Active material washing, • Automatic cleaning function, • Water recycling system online , • Intelligent Control system.
	• Heavy material separator (double-valve control with collection tank), • Modular design and integrated installation, • Easy exchange of elements, • Heavy duty washing, separation of different specific densities material, • Longer lifetime of downstream machines, • Dusts separation device.
	• Combines a cleaning centrifuge and thermo-mechanical drying in a single plant. This enables a clean, dry process that is easy on the material and produces consistently high end product quality, • Drying and cleaning in a single step, • Simple operations, low maintenance effort, • Automatic machine control, • Final moisture less than 7%.
	• Auto control system, • Auto warming system, • Module control system, • Data monitoring and analysis.

Why ACE WashTech?
Ability
Thanks to innovative washing technology and high quality performance. ACW system removes the most difficult contaminants from PP/PE/PS/ABS plastic materials. Cleans post consumer film, agricultural film, Rigid bottle/drum, Battery case, WEEE plastic and even heavily contaminated woven bag fibre material. Provides almost 100% purity washing results.

Stability
ACW system is available for 24 hours working non-stop operation. Optimized design and top brand components to each module. Which could minimize the downtime ratio and save the maintenance time. This ensures the maximum availability and highest productivity for user.
Efficiency
ACW system is designed in all details for efficiency improving. The modular design could simplifies the planning and accelerates the implementation. The system have very low consumption values for electricity, water and chemicals. The operating costs and maintenance costs are absolutely reduced. Consistently the lowest investment costs and highest value creation!
Modularity
ACW system is a flexible modular system. All elements required by any customer for different application could be combined freely. This design reduces planning, construction and assembly time effectively. And it's possible to adjust the system with regard to technological modification and market changing. This makes the investment future-proofing!

Intelligent control
Intelligent automatic module control of ACW system. One Main control panel with modern Touch Display for efficient interaction of all component. Multi-language available for operating system.
Turnkey service
ACW system is a flexible and customer-oriented recycling solution. The proposal is integrated and engineering project. Building design, overseas installation, commissioning and training are available. Machine warranty with spares in stocking and in-time delivery. Consistently quick and careful service in pre-sales and after-sales process.
