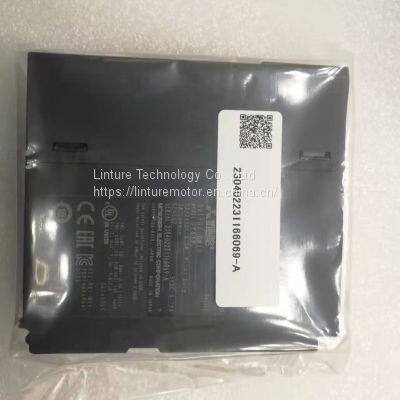

Q Series DC Power Supply Mitsubishi QY81P Model 32 Point Source Output

Product Details

Product Details

Product Description

Product Description
Mitsubishi q series DC power supply 32 point source output module qy81p product
specification:
[output type] transistor source output module
[32 points] output
[isolation method] Optocoupler
[rated load voltage] 12-24vdc (+ 20 / - 15%)
[maximum load current] 0.1a/point, 2A / common terminal
[maximum starting current] 0.7A, 10ms or less
[leakage current at off] 0.1mA or less
[maximum voltage drop at on] 0.1vdc (standard) 0.1A, 0.2vdc (maximum) 0.1A
[off - > on response time] 1ms or less
[on - > off response time] 1ms or less (rated load, resistive load)
Zener diode
[protection function] activate the overheating protection function in 2-point
increments and the overcurrent short-circuit protection function in 1-point
increments
[external power supply voltage] 12 / 12VDC (+ 20 / - 15%) (ripple coefficient
within 5%)
[external power supply current] 40mA (at 24VDC) / 1 common terminal
[dielectric withstand voltage] 560vac MS / 3 cycles (altitude 2000m)
[insulation resistance] 10m Ω or higher measured by insulation resistance
tester
[immunity] through 1500vp-p noise voltage, 1 μ S voice width and 25 to 60Hz
voice frequency voice simulator first instantaneous voice iec61000-4-4: 1kV
[protection grade] IP2X
[common terminal arrangement] 32 points / common terminal
[I / O points] 32 (set the I / O allocation according to the 32 point output
module.)
[running indicator] on indication (LED)
[external connection] 37 pin connector * 2
[external wiring connector] a6con1, a6con2, a6con3, a6con4 (option)
[5VDC internal current consumption] 95ma (standard: all points on)
[overall dimension (h * w * d)] 98 * 27.4 * 90mm
[weight] 0.15kg
