Multi Purpose Precision CNC Grinding Sharpening Machines Tfn800 for Cold Saw Blade

Product Description

2021 Multi-Function Precision CNC Tungsten Carbide Circular Saw Blade Grinding Sharpening Machine TFN800

Saw blade diameter	150~860mm
Hook angle	25°~-30°
Top angle	8°~30°
Top bevel	45°~-45°
Face angle	30°~-30°
Bore diameter	12~120mm
Pitch	2~80mm
Top wheel size	φ125mm*φ32mm*16mm
Notch wheel size	φ125mm*φ32mm*9mm
Face wheel size	φ150mm*φ32mm*14mm
Wheel speed	2500~3500RPM
Grinding speed	6~30s/tip
Power	5.5KW
Dimension	2400*2350*2300mm
Weight	3800KG

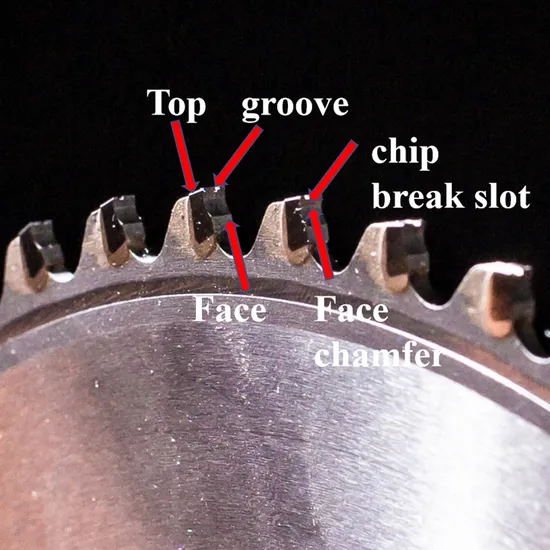

1) Used for grinding cold saw blade. It is multi-functional, can grind top/face/chamfer/groove/chip breaker slot
2) Easy operation: CNC with friendly interface panel, all parameters can be set directly and stored automatically
3) High accuracy: <0.015mm or even better. this machine is with the highest precision
4) Good stability: use specially treated cast iron base, no deformation, low vibration,long term use.
1. Besides TFN800, do you have other circular saw blade grinding/sharpening machines?
---Yes, sure. We mainly have four series of products:
1) Economical CNC tungsten carbide tipped circular saw blade grinding machine;
2) Precision CNC tungsten carbide tipped circular saw blade grinding machine;
3)Cold circular saw blade cermat tipped grinding machine;
4)Robot CNC automatic tungsten carbide tipped circular saw blade grinding machine.
In addition to these CNC grinding machines, we also have some simple end jump detector, radius jump detector, and angle detector.
2.Is the company's technology for producing saw blade grinding machines mature?
---Sure,our company have more than 120 technicians, and they have more than 20 years working experiences.
3.What is the grinding accuracy of the grinding machine?
---The accuracy of the grinding machine is between 0.01-0.03mm.
4. Which tooth surfaces of the saw blade can your grinding machine grind?
---It can grind any tooth surface, and you can choose a grinding machine to grind the tooth top, tooth face or side surface according to your needs.
5. Are you a manufacturer or a trading company?
---We are professional saw blade grinding machine manufacturer. We have more than 120 technicians dedicated to the design, development and production of saw blade grinding machines. And there is an independent sales department and after-sales department to provide you with services.
6. How can I select a suitable grinding machine?
---You can tell us your requirements of saw blade grinding machine, and other parameters of your saw blades, we will give you professional suggestion.
7. Can I contact you if I have any questions?
---Sure, we will serve you wholeheartedly, please feel free to contact us if you have any questions.
8. What are the advantages of our circular saw blade sharpening machine?
1) long service life: using quality cast iron base treated by high temperature tempering and vibration aging. no deformation and low vibration.
2) easy operation: CNC with friendly interface panel, all parameters can be set directly and stored directly. A machine can store up to 100 sets of data.
3) high efficiency: adjustable grinding speed, robot auto load, one person can operate several machines at the same time.
4) high accuracy: use quality machine components to realize high accuracy.
5) competitive price: price is very competitive for such good quality.

---
