Haiming Cheaper small PP PE PVDF welding machine

Product Description

Product Description

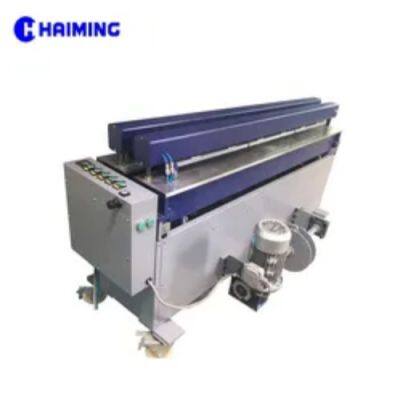

Haiming Cheaper small PP PE PVDF welding machine


Features
The new steel structure, mechanical synchronous transmission technology, through regulator, in the weld area to achieve uniform pressure.
All actions are cylinder drive, easy to operate, durable.
Select specific welding pressure data according to the material, temperature.
Sheet metal welding thickness 3mm-25mm.
Range of Application
Manufacturing water tanks and containers, plastic devices, ventilation systems, water treatment systems,Scrubber, environmental technology, swimming pool, transportation and logistics.
Technical Data

Model	S-PH1500	S-PH2000
Machine Length( mm)	1950	2600
Machine Width (mm)	400	400
Machine Height (mm)	1000	1000
Total Weight approx. (kg)	300	600
Welding thickness(mm)	3-25	3-25
Welding Length(mm)	1500	2000
Minimum diameter of pipe(mm)	200	200
Air pressure	8,0 bar	8,0 bar
Power supply standard	220230380400	220230380400
Heating element power	2.5	3
The heating element size (mm)	1600mmX20mmX50mm	2200X22X55
Welding materials	PP PE PVDF…	PP PE PVDF…

Why choose us?
1.Our equipment has strong competitiveness, our equipment already ahead, our device has the following characteristics:
The only use of advanced technology from Germany
The only electrical integration automated system
The only design
The only practical new technology
2. Our factory is the first one to manufacture the automatic plastic butt welding machine in China and service this line More than decade . And our factory have many skilful peration of workers and the stability of the scale of production. And we also have many outstanding engineers,they can help you design the machines you want.
3.Genuine products with excellent quality and competitive price.
4.Cooperating with the customers all over the world and knowing the markets very well.
5.After-Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

---
