US$11,000.00-20,000.00
|
1 Set
(MOQ)
|
Basic Info.
Automatic Grade
Automatic
Certification
CE, ISO9001: 2000
After-sales Service
Online Service
Working Width
2000--5500mm
GSM
80--1000 G/ Square Meter
Needle Density
5000--7000 / Meter
Machine Color
Stoving Varnish
Power
7.5kw, 11kw, 15kw, 22kw
Needle Plate
Air-Press System
Needle Frequency
<700 Rpm
Product Thickness
4--15mm
Transport Package
Export Standard Packaging
Specification
2000--5500mm
Production Capacity
50 Sets /Month
Product Description

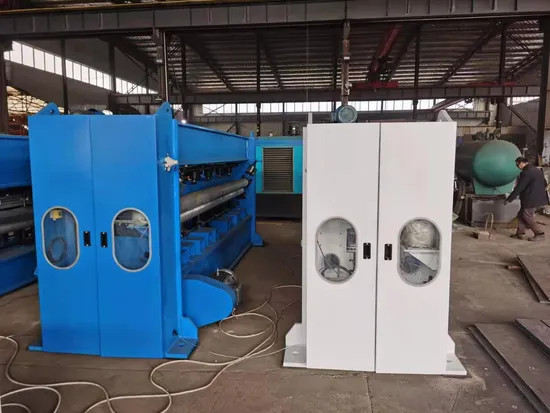

non woven needle punching machine polyester fabric making machine carpet making needle punching machine Product Description
Needle punching machine can be fleeciness fiber, cotton to comb cotton, spread nets,
acupuncture, strengthening become needle-punched cotton, insulating felt, raw materials of
greenhouse, shoes mattresses, sofa cushion, car seat rug, chemical product and different
specification product.
Product Parameters
Main Technical data
| Model | GMZ- |
| Weight About | 7-12T |
| Total power | 22KW |
| Main motor | 15KW; 3 phase AC power 50Hz |
| Product density | 100g/m2-900g/m2 (depend on the raw material type,also product requirements and No. of units) |
| RPM | 100--700 |
| Protection | Main motor overload protection |
| The control mode | Constant power & Inverter control |
| Working width | 2200--5200mm / adjustable / cut at mid |
| Needle plate | Galvanized- faced |
| Needle density | 5000--7000n/m |
| Type of holes | Diameter 1.83mm/An inverted cone |
Product Overview
Application
Material----- product (non woven felt)
Product Details
Related Products
We also have a low-speed Non-woven Mattress Needle Punching Machine
Certifications
Our Exhibition
After Sales Service
After-sales service
For machine:
1. We will offer enough spare parts, a video of how to assemble.
2. The warranty of the machine is 12 months.
For production line:
1. We will send 2-3 workers to do the installation and commissioning of the line as the request of the buyer. And the buyer should provide round-trip airplane tickets, accommodation, and allowance.
2. The allowance is 60 dollars for one person per day.
If you have interest in our products, please feel free to contact me.-----Annie
>>
