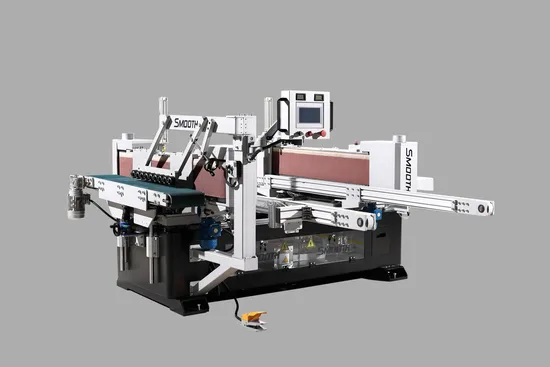

Double-Side Profile Drum Sander Machine with Soft Sanding Pad

Product Description

3 IN 1 Drawer Cabinet Oscillating Sander - Premium Wood Sanding Machine for Professional Woodworking
Manual sanding can be time-consuming and inefficient. The double-end sanding machine from Valentina Exim Co., Ltd is meticulously engineered to revolutionize your workflow.
Designed for drawers, cabinets, and panels, this innovative machine performs dual-end calibration and polishing simultaneously, drastically enhancing productivity and reducing labor costs.
An indispensable asset for any modern furniture factory, ensuring superior finish quality and operational efficiency.
Product Parameters

MODEL	S350	S230
Working Thickness	5-350mm	5-230mm
Working Width	400-1200mm	400-1200mm
Abrasive Belt Size	370*3780mm	250*3780mm
Main Motor	11Kw*2	7.5Kw*2
Machine Dimension	2700*2240*1720mm	2700*2240*1620mm
Weight	1500Kgs	1450Kgs
Automatic Sanding (Drawer/box sanding)	√	√
Extra work station 1 (For edge sanding auto feeding)	√	√
Extra work station 2 (For manual sanding with Bevel adjustment sanding)	√	√
Dust Port (100mm*4)	√	√
Belt Jet Blower	√	√
Servo controlled sanding	√	√
Servo controlled feeding	√	√
HMI	√	√
Locator	Optional	Optional
Various Sanding Speed	Optional	Optional

Working Principle
1. Oscillating sanding mechanism for uniform surface treatment.
2. Perfectly suited for double-end sanding and polishing of drawers and cabinets.
3. Versatile 2-in-1 design with an extra side table for small component sanding.
4. Advanced servo feeding for seamless in-and-out material handling.
Application

Detailed Photos

Extra Work Station 1
Extra Work Station 1 is an edge sander for workpieces. It shares the sanding belt of the main machine which saves cost and energy. Pinching roller helps for automatic auto feeding for a safe sanding.


Extra Work Station 2
Extra Work Station 2 shares the right sanding belt of the main machine which offers manual sanding in both vertical and bevel way.

Safety Protection
When using the sanding machine, personal protective equipment (PPE) is essential. Sanding can release fine particles and hazardous chemicals, particularly from old finishes. Ensure comprehensive protection for your eyes, ears, lungs, and skin with the appropriate PPE:
Eyewear: Safety goggles provide a dust-tight seal, but glasses or face shields are also effective. Hearing protection: Exposure to high noise levels may cause hearing damage, often at levels lower than anticipated. Many power tools exceed safe sound levels. Use earmuffs or earplugs to safeguard your hearing during sanding operations. Respiratory protection: For minor wood sanding, a dust mask might suffice. However, for larger dust quantities or chemical exposure from paints, stains, or varnishes, a respirator is necessary. Choose filters based on the chemicals involved: particulate-level protection for sawdust, and specific filters for organic vapors like paint thinner, lacquer, or epoxy-based resin. Gloves: Simple gloves can prevent skin contact with harsh chemicals and abrasions. Even non-toxic paints and stains can irritate the skin, and airborne dust can cause dryness. Wear gloves to keep your hands protected.

---
