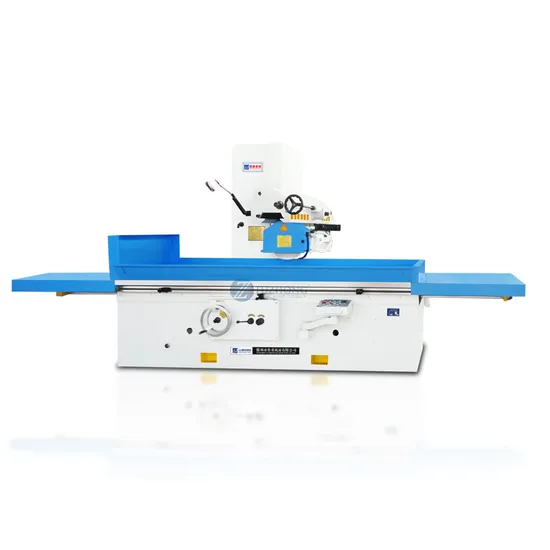

Surface Small High Precision M7130A Manual Grinding Machine

Product Description

Surface Small High Precision M7130A Manual Grinding Machine
Product Description
Product Parameters
Product main technical specifications:

Specifications		Unit	M7130A
Table size		mm	300x1000
Max.size to be grind		mm	300x1000x400
Max.load capacity(with electric magnetic chuck)		mm	470
Max distance from table surface to spindle center		mm	575
Max.table longitudinal travel		mm	1100
Min. Table longitudinal travel		mm	200
Table longitudinal travel speed		m/min	3-27
Table T slot			3x18
Wheelhead cross travel	Continuous feeding speed	m/min	0.5-4.5
	Intermittent feed travel	mm/t	3-30
	Per div feed of handwheel	mm	-
Wheelhead vertical travelg	Rapid speed	mm/min	400
	Per Rev. feed of handwheel	mm/gra	0.005
	Per Rev. feed of handwheel	mm	0.645
Wheelhead motor	Power	kw	5.5
	Speed	rpm	1440
Total rated power		kw	11
Grinding wheel size(OD*W*ID)		mm	350x40x127
Machine weight		kg	3500

Detailed Photos
Company Profile
FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
