Hydraulic Hose Pressing Machine for Clad Pipe Multiple Unit Tube

Product Description

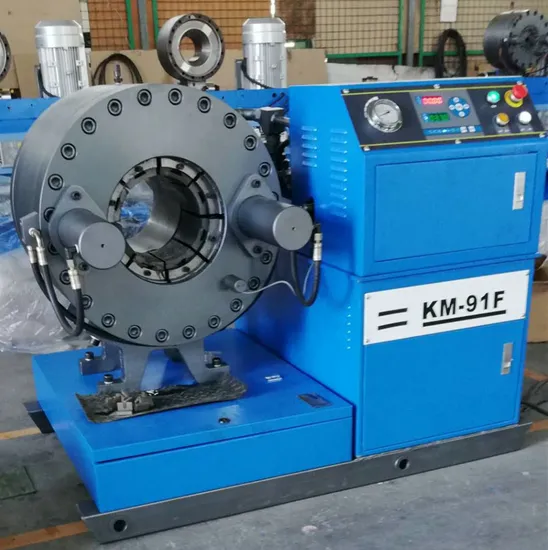

Technical Data Of KM-91F Heavy Hydraulic Hose Crimper Machine

Model NO.	KM-91F
Crimper Rage	3" -6" IV
Swaging Force	2400Ton
Standard Voltage&Motor	380V/50Hz/3PH; 5.5kW
Opening Without Dies	φ270mm
Opening	≥38mm
Open Time	≤ 4s
Close Time	≤ 22s
Capacity Of Oil Pump	35L/min
Systematic Pressure	30Mpa
Hydrauli Oil	Wnter: YB-N32; Summer: YB-N46
Volume Of Oil Tank	150L
Weight	880Kg
Volume (L*W*H)	1420*900*1000(mm)
No. of die sets	4 sets

Note: the voltage & die sizes can be customized according to your needs
Advantages Of KM-91F Heavy Hydraulic Hose Crimping Machine
1).Low center of gravity, easy to operate;
2).Huge opening with large swaging force;
3).Mechanical seals with good tightness;
4). High efficiency, available for continuous operation
Applications Of Heavy Hydraulic Hose Crimping Machine KM-91F
1).Suitable for high precision pressing for low and high pressure hose diameter, starting from 3" up to 6" internal hose pipe.
2).For oil pipeline, oil engineering maintaince.
Hydraulic Hose Crimper why not choose Kangmai?
1). Kangmai hose crimper has approved CE & ISO and audited by SGS.
2). The fitting and hoses crimped by kangmai machine never leakage the oil and never broken. The reason are like below:
(a)The machine head process by CNC machine, roundness and taper is within 0.1mm.
(b)The machine die base and dies adopt special die steel and process by advances craft,the hardness is above 55HRC. The die hardness is enough so that the die life is very long and easy to crimping high pressure hydraulic hose, such as 4SP even 6SP.
(c)The technical of machine head is forging or cast. Casting is cheap but has small hole on the machine head. The piston will divide from casting machine head.

---
