US$2.00-5.00
|
10,000 Pieces
(MOQ)
|
Basic Info.
Baby Seat Brand
All Car Brands
Material Surface Thickness
0.188mm
Output Signal
Resistance<100Ω
Film Thickness
0.5+-0.1mm
Bottom Glue
Pet 3mdouble-Sided Glue
environment Temperature
-15°c-80°c
Transport Package
Carton Packing
Specification
180*86*150mm
Production Capacity
2000000pieces/Year
Product Description
Product Description

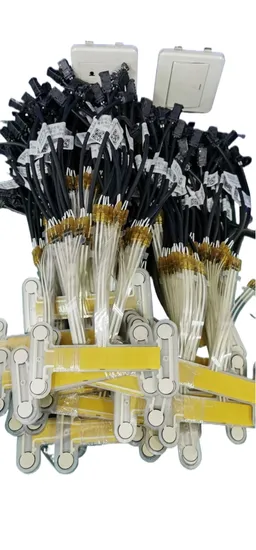

This sensor is popular used by car seats and taxi seats. It can recognize when person on the seats. It's a pressure sensor, also called touch point sensor. Some bus passenger seats also can use this kind of sensor for occupancy application.
| Function | Seat pressure |
| Packing | 50pcs/box |
| MOQ | 100pcs |
| Payment Term | T/T,Paypal,WU |
| Trade Term | EXW,FOB,CIF |
| Certificate | CE and ISO |
| Sample | Available for testing |
| Performance Parameters Table |
| Parameter | Condition | Sign | Numerical Value | Unit |
| | | | Min | Max | |
| Working Voltage | | U working | 0 | 20 | V |
| Working Current | | I Working | 0 | 50 | mA |
| Non-trigger resistance value | No load | Rx=R No load | 10.0K | | Ω |
| Trigger resistance value | Bearing body | Rx=R Trigger | 0 | 100 | Ω |
| Insulation impedance | No load | Rx=R No load | 10 | 20 | MΩ |
| Specification |
| Material | PC |
| Material surface thickness | 0.188mm |
| Output Signal | Resistance<100Ω |
| Film thickness | 0.5+-0.1mm |
| Bottom glue | PET 3MDouble-sided glue |
| Enviroment Temperature | -15°C-80°C |
| Permanence | >150000 Time |
| Pressure range single-spot test(Special Poise) | 70g | 100%non-conducting |
| 130g | 100%conducting |
| Connector | Seal gum |
| To match as the seat |
Why choose us
1) We can provide you with different types of seats and seat parts for your selection.
2) Small MOQ: 100pcs,mixed order acceptable, welcome trial order.
3) We can provide samples for your test.
4) Safety, on-time delivery, excellent quality with competitive price.
5)OEM &ODM service available.
>>
