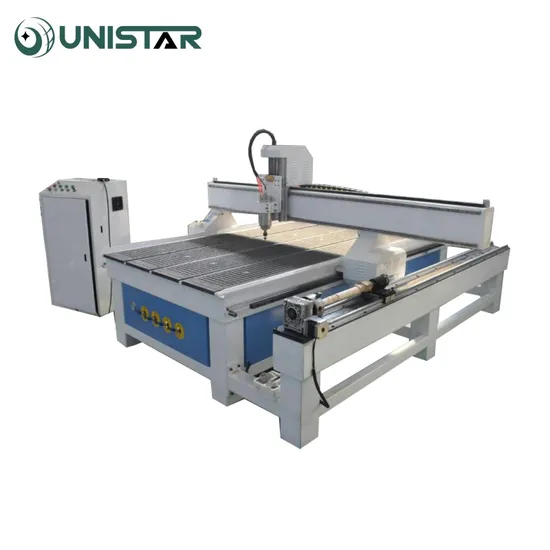

3 Axis 4 Axis 3D Engraving Wood CNC Cutting Machine with Factory Price

Product Description

Product Parameters

Name	Specification
Machine area (X)	1200mm
Machine area (Y)	1200mm
Machine Area (Z)	200mm
Working area	1200*1200*200mm
Rotary	Diameter 200mm; Length 1200mm
Spindle	4.5 KW HQD air cooling spindle
Machine body	Heavy duty structure weld steel structure , more stable
Control system	DSPA18 control system
Table type	Strong vacuum suction table
Motor and driver	Stepper motor and drivers
Inverter	Shanghai Fuling inverter ( can control spindle speed very well)
Transmission	Taiwan TBI ball screw (has good performance ,long life ,import from taiwan )
Rail guide	Taiwan import Hiwin rail guide ,not easy to rust , keep high accuracy
Prevent dust system	Dust proof system
Transmission	X,Y Helical rack -pinion ,Z axis by TBI ball screw
Oil system	Manual Oil injection system
Traveling speed	60m-80m/min
Processing speed	25m/min
Spindle RPM(max)	0-24000 RPM
Position accuracy	±0.02mm
Tool sensor	Auto tool sensor
Dust collect system	3KW Double bottle collect system
Vacuum pump	7.5KW vacuum pump for vacuum table
Working voltage	220V/50HZ
Warranty	2Years
Packing	Adopt international strong plywood case ,Moistureproof waterproof

Detailed Photos
RichAuto DSPA 18 Control system
DSP control system don't need connect to PC.It included three parts, control card, U disk,and handle Controller. DSP is easily operate and learned, especially for the freshman.
HQD Air cooling spindle
No need to install water pump, easy to operate

Leadshine Stepper motor and driver
Won't lose step when it work,guarantee the positional accuracy of the motor.

Oil Injection System
Automatic oil injection system, timed and quantitative automatic oil injection to avoid oil cut-off.

Rail Guide
The cost can be effectively controlled by using the HIWIN guide rail. The HIWIN guide rail has a small friction coefficient, which can effectively reduce power consumption during use. HIWIN rail design is simple, strong rigidity, can be perfect for optical fiber cutting machine.

Tool Instrument
Automatically determine the distance from the tip to the workpiece, improve accuracy and save time.

Dust Collector
Effectively inhales dust such as wood chips and dust generated during the production process to keep the working area clean.


Samples
Product Description
Introduction
1530 CNC cutting machine is widely used in woodworking and furniture industry, can process a variety of patterns on wood, can be carved and cut. It can also be carved and cut on metal materials. The process is perfect and the speed is fast. By changing different tools, the processing of complex patterns with different patterns is realized.
Application Industry
1. Furniture industry: solidwood doors, composite doors, cabinet doors, interior doors, sofa legs, headboards, antique furniture and superficial flower-shaped engraving of various plate-type furniture and disposable finishing of process.
2. Decorated industry: variety of decorations engraving process such as decorative murals, screens, decorative patterns, three-dimensional wave boards, sound-absorbing panels and so on.
3. Advertising industry: engraving and making for acrylic cutting and engraving, acrylic plastic model making, badges and a variety of logo signs.
4. Arts & crafts industry: sculpture making of arts & crafts such as process relief, shadow carving, craft ornaments, car accessories and so on.
5. Musical instrument industry: headstock processing ,guitar semi-finished products processing, surface sculpture and three-dimensional curved surface making of various musical instruments' decorative patterns.
Company Profile
Our company
1. Quality assurance. All our products have passed product quality inspection. Each of our machines has a quality inspection certificate.
2. Widely used. Our machines can cut all kinds of metal materials in aerospace, automotive manufacturing, sheet metal processing, decoration and other industries.
3. Source factory. We have our own machine manufacturing factory, we strictly control every link of machine manufacturing, can ensure the quality of the machine.
4. Worry free after sale. We have a complete after-sales service system, 24 hours to serve you.Our services 1. Provide 24-hour online consultation service, customers can ask questions at any time.
2. Three years warranty. In case of quality problems during the warranty period, the damaged main parts can be replaced free of charge (caused by non-human factors).
3. Replacement of consumable parts can be provided at the agency price.
4. On-site service is available. If the machine breaks down, our engineers can go there to repair it.
We provide distance learning, including machine assembly, commissioning and maintenance.
Packaging & Shipping
Firstly, we use stretch film to package the machine in order to keep the machine clean and avoid shaking during shipment.
Secondly, we use plywood case to package outside, which doesn't need to be fumigated or heat treated.
Finally, we use steel tube under the plywood case, which can protect the package from damage during loading / unloading.
1. Delivery time: 15~20 business days after payment
2. Delivery way: by sea / train, or as agreed
Customer Visiting
We have been manufacturing and selling optical fiber cutting machines for many years and have customers all over the world. Our machines are well received by customers.

FAQ
Q1: What kind of Training and After-Sales Service do you offer?
A1: We Support Engineer online training and guide, and also when shipping we will send training video, user's manual instruction along with the machine. 90% customer can learn it well . we can send engineer oversea training if customer needed .
Q2: Did Your Factory Accept OEM Production ?
A2 : Yes , we can customize the machine and logo according to customers' requirements
Q3: How to solve it if there is some problem or parts broken during operating metal laser cutting machine
A3: If machine technical problem , we have engineer online support service , through remote control , video show , to help solve problem , if parts broken ( not consumption parts ,we will take place a new one as soon as possible .
Q4: Why I choose your company products
A4: High quality machine control inspection and perfect service:
Supply technical support all life time for our machine; We have professional after-sale service team to supply technical support to our clients for free. You can talk with them at any time if you need. Strict implementation of after-sales warranty. The important is that you will receive the Corresponding goods after you do payment.
Q5: If I want to see the machine condition of your factory , And It's not convenient for me to go to China , what should I do?
A5: We support the production visualization service. The sales department who responds to your inquiry for the first time will be responsible for your follow-up work. You can contact him /her to go to the factory to check the production progress of the full covered , or we send you the sample pictures and videos you want. We support free sample service.

---
