US$21,900.00
|
1 Piece
(MOQ)
|
Basic Info.
X,Y,Z Motor Type
Servo Motor
Power Supply
Three Phase 380V/50Hz
Transport Package
Standard Wooden Package
Production Capacity
25 Sets/Month
Product Description
NOTE: The currency exchange rate fluctuates greatly,
please consult customer service for the best price.

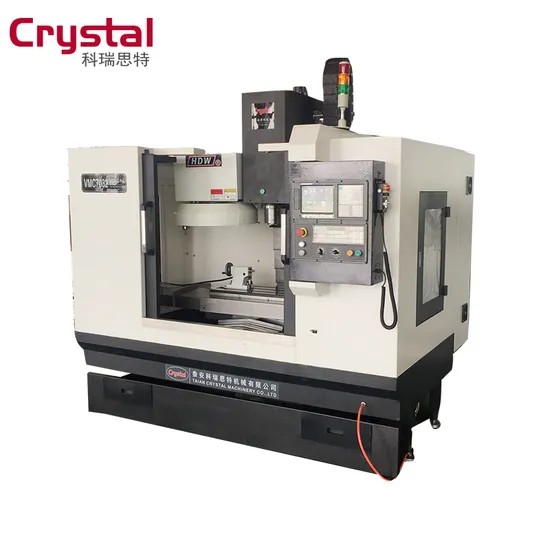

Siemens CNC Vertical Machining Center Price VMC7032
A. Standard configuration
KND system ( you also can choose Siemens and FANUC control)
Umbrella type tool Magazine, 12 tools
Taiwan BT40 spindle unit
High precision ball screw
Fully-guarded type machine
self-lubrication, coolant system, lighting system
B. Specification
Items | Details | Unit | VMC7132 |
Table | Size | mm | 800×320 (1000×320) |
Travel of 3 axis | mm | 610/320/400 |
Max, table load | kg | 400 |
T-slot | Size | mm | 3-14 |
Center distance | mm | 100 |
Spindle | Spindle taper | | BT40 |
Spindle to guide | mm | 376 |
Distance of spindle head to table | mm | 130-530 |
Max speed | rpm | 8000 |
Motor power | KW | 3.7/5.5 |
Spindle drive | | Belt transmission |
Accuracy | Positioning accuracy | mm | 0.02 |
Repeatability | mm | 0.01 |
Axis motor | Power of X/Y/Z | Kw | 1.2/1.6/1.6 |
Feeding speed | Rapid feed of X/Y/Z | mm/min | 1000 |
Cutting feed of X/Y/Z | mm/min | 6000 |
Parameters | Air pressure | Kgf/cm² | 6 |
Weight | Kg | 1900 |
Dimension | mm | 2280*1760*2200 |
Power | | 3 phase 380V, |
| | | |
Make you satisfied is our business!
The First Batch in china suppliers to join the ****** Trade Assurance,you could get Zero-risk purchase service.
Over 300 clients from more than 40 countries could tell you we are your realiable parter.
We are professional cnc machine factory,our price could beat any competitors in china market .
We supply professional solution to you based on your own process one by one.
We accept custom configuration such as auto feed system,the 3rd axis,hydraulic chuck and tailstock and so on.
We supply one years Warranty for whole machine and 3 years warranty for cnc system and servo motor.
7*24 hours Email or phone service.
>>
