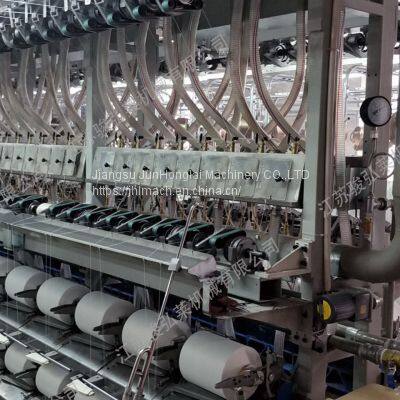

Air texturing machine

Product Details

Product Description

Product Description
YCKB-80Introduction
Product classification:textile machinery,chemical fiber machinery
product type:Chemical fiber machinery auxiliary equipment
purpose:air textured yarn
Model:yckb-80
INGOTS:80
Purpose
Yckb-80 uses Compressed air to process the filament fed by air change, so as to obtain fluffy and make the air textured yarn have the appearance and feel of wool like,cotton like, hemp like or silk like.
This machine can process polyester,polypropylene, nylon, etc. for use in textile machines
Main technical parameters
Machine type: double-sided operation
Segments: 5
INGOTS: 80
Visit fiber density: 600~ 2400D
Coil bobbin dimensions:Φ 75 x 290 mm
Machine power consumption: about 20KW
ACCESS COMPRESSED AIR: 8 ~ 10kg/㎡ 16m³/min
Machine Size: 9000 * 9200 * 3500(length * Width * Height)

---
