Product Details
Product Description
Product Description

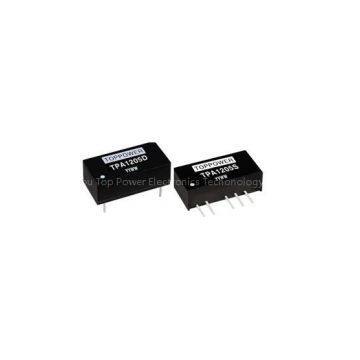

1WIsolated Single and Dual Output DC/DCConverters power supply module
1W SIP7 unregulated 3KVDC isolated DC/DC converters
5VDC input with 5VDC output
case size:19.5*6*10mm
TPA0505S is the replacement of TMA0505D/ NMA0505SC
TPA1205S= TMA1205D /NMA1205SC
we,TOPPOWER main products:
0.1W-400W DC-DC converters,1W-30W AC-DC converters,(SIP/DIP/SMD)
TOPPOWER quality : ISO9001:2015, IATF16949:2016
welcome inquiry.
The TPA series are miniature,isolated 1W DC/DC converters in a SIP and DIP package. They offer the idealsolution in many space critical applications for board level powerdistribution. The internal SMD construction makes it possible to offer aproduct with high performance at low cost. The series offers smaller size,improved efficiency, lower output ripple noise and 3KVDC isolation.
Part Number
| Nominal Input Voltage
| Output Voltage
|
V
| V
|
TPA0303DA
| 3.3
| 3.3
|
TPA0305DA
| 3.3
| 5
|
TPA0505DA
| 5
| 5
|
TPA0509DA
| 5
| 9
|
TPA0512DA
| 5
| 12
|
TPA0515DA
| 5
| 15
|
TPA0524DA
| 5
| 24
|
TPA1203DA
| 12
| 3.3
|
TPA1205DA
| 12
| 5
|
TPA1209DA
| 12
| 9
|
TPA1212DA
| 12
| 12
|
TPA1215DA
| 12
| 15
|
TPA1505DA
| 15
| 5
|
TPA1512DA
| 15
| 12
|
TPA1515DA
| 15
| 15
|
TPA0505D
| 5
| ±5
|
TPA0509D
| 5
| ±9
|
TPA0512D
| 5
| ±12
|
TPA0515D
| 5
| ±15
|
TPA0524D
| 5
| ±24
|
TPA0505S
| 5
| ±5
|
TPA0509S
| 5
| ±9
|
TPA0512S
| 5
| ±12
|
TPA0515S
| 5
| ±15
|
TPA0524S
| 5
| ±24
|
TPA1205D
| 12
| ±5
|
TPA1209D
| 12
| ±9
|
TPA1212D
| 12
| ±12
|
TPA1215D
| 12
| ±15
|
TPA1224D
| 12
| ±24
|
TPA1205S
| 12
| ±5
|
TPA1209S
| 12
| ±9
|
TPA1212S
| 12
| ±12
|
TPA1215S
| 12
| ±15
|
TPA1505D
| 15
| ±5
|
TPA1509D
| 15
| ±9
|
TPA1512D
| 15
| ±12
|
TPA1515D
| 15
| ±15
|
TPA1524D
| 15
| ±24
|
TPA1505S
| 15
| ±5
|
TPA1512S
| 15
| ±12
|
TPA1515S
| 15
| ±15
|
>>
