Terry Towel Machine Warp Knitting Machine

Product Description

Product Description

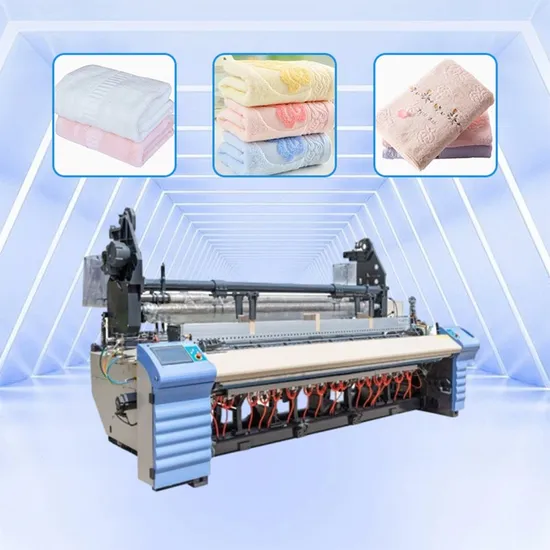

JLH9200M air jet terry towel loom relying on JLH9200(same with Tsudakuma ZAX9100)textile machinery advanced technology, with low energy consumption, high efficiency and wide adaptability as our purpose, is such a high speed air jet towel loom.

Through a new three-dimensional design and computer analysis, and applying for virtual prototype technology,
we designed the weft insertion, open, beating and loop mechanism, success to meet the rising demand of air jet towel loom in domestic and abroad.

At the same time, our air jet towel loom also has excellent performance in high speed adaptability and variety adaptability. Currently that is one of the most excellent products on the market.
Product Parameters

Item		Specification	Remark
Reed width	Reed width(cm)	230 260 280 300 330 360
	Useful reed width	Reduce 0-80cm (280cm above)
Fabric	Material & weave	Cotton Filament Rayon Plain Twill Satin jacquard
Power	Main power	6.5kw-7.5KW (Jacquard shedding ) 4.5-5.5kw dobby shedding
Speed	Motor-belt pulley	RPM 500 Jacqaurd shedding
		RPM 550 Dobby shedding
Weft insertion	Weft selection	Four color Six color
	Magnetic valve	SMC Japan
	Feeder	Vibration model
		WPS
		4 /6 (our own brand feeder)
	Nozzle	Energy-saving nozzle,jiete brand
Shedding	Shedding method	Jacquard shedding(China brand) Dobby-staubli
Let off device	Continuous positive let off	Positive easing Double beam
	Flange diameter	Ø800 Ø1000
Take up device	Take up	Electronic take up (ETU)
	Max cloth roll diameter	Ø600mm(cam dobby jacquard) Ø1200mm(jumb batching motion)
	Weft density	Take 40s cotton yarn for example
		ETU 25-300picks/inch
Beating	Crank beating system	Six-bar-beating-up motion (above 280cm),same with Tsudkoma Zax9100
Selvage		Magnetic edging wire
edge		Tuck-in edge/Leno edge
Temple		Top mounted
		Ring number 32
Cutter		Mechanical cutter
Lubrication		manual oil supply

other product
Company Profile
Qingdao Jinlihua Textile Machinery Co.,Ltd
Since 1973
Focus on textile machine producing and researching.
We mainly produce air jet loom in different model to make different fabric.
Our Top sale product is medical gauze air jet loom,and medical gauze production line.
We supply turnkey project to our customer from abroad,and have several successful project.
Our mission:To grow up with customer,to save cost for customer,to be partner with customer.
Our Advantages
1.we are manufacturer of air jet loom,have the quality control system
2.we can supply sales service on long time,No matter how many years you purchased our equipment,we can supply the spare parts on time.
3.we knows the textile market very well,even medical gauze market,we can help customer to choose the correct model machine,to increase profit,to reduce production cost.
4.we have experience on establish new and latest type factory,to help customer to save learning and researching time.
5.our sales and service team is more professional,we can give feedback on time.We have helped customer to trial the machine online successful during the epidemic time.

Certifications

Packaging & Shipping

After Sales Service
1.we have agent and service center in some country,to guarantee the local service on time.Customer can get spare parts on time
2.we have more than 5 engineers who has experience work in abroad,and can help customer to trial the machine on time.

---
