10L Disposable Water Bottle High Speed Blow Molding Machine

Product Description

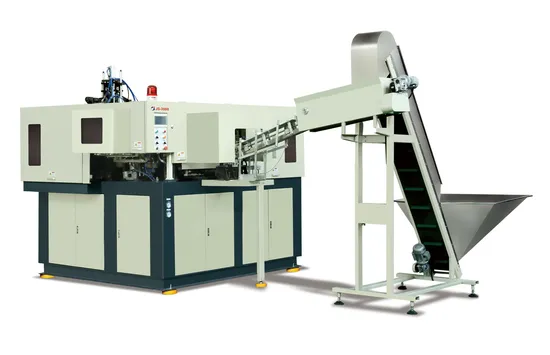

2cavities 10L Fully Automatic Blow Molding Machine for Water Bottle
1.High quality compact machine Most popular pet bottle blowing machineJS-2000C With touch screen, Use Festo ( German brand) , SMC (Japan brand ) & Parker ( U.S.A Brand) pneumatic components. PLC use Mitsubishi (Japan brand)
2.Nontoxic conveyor belt to carry preforms
3.Produce PET Bottles ( such as: wine, beverage, soybean, vinegar bottles and so on)
4. Easy to maintain
5. Infrared lamps
6.High safety. high speed with high efficiency.
7.Manual saving, one man is enough for operation the machine.
8.Stable performing with easy maintaining.
9.Imported PLC controlling and man-machine interface computer.
10.Japan Omron inspection sensor.
11.Adopt the new type double bend arm and the four rod-clamping structure(won the patent): Cross direction; Middle mould board is move parallel; the distance between two mold board is adjusted by the chain wheel. Thus, the clamping force is very strong.
12.Power saving design that can increase your profits.
13.Segregate type air controlling system, which is designed for avoiding waste pollution.

		JS-2000	JS-2000B	JS-3000	JS-4000	JS-6000	JS-600C	JS-2000C	JS-2000X	JS-3000B
Production capacity	BPH	1800-2200	1200-1600	2700-3000	3300-4000	5600-6000	450-650	1000-1200	2000-2300	1800-2400
Number of Cavity	/	2	2	3	4	6	1	2	2	3
Clamping force	kN	180	380	180	350	350	150	450	160	550
Mould opening stroke	mm	200	260	200	200	200	230	260		260
Stretch stroke	mm	350	350	280	350	280	430	430	280	350
Max. Container Volume	liters	2	5	0.7	2	0.7	10	10	0.7	5
Max. Neck Size	mm	40	50	40	40	35	55	50	40	50
Max. Bottle diameter	mm	110	180	70	105	70	210	210	70	180
Max. Bopttle height	mm	350	350	280	350	270	430	430	280	350
Installed Power	kW	41	44	31	68	52	31	44	25	64
Max. Heating Power	kW	40	40	30	64	48	30	40	24	60
Operating Air Pressure	Kg/cm²	8	8	8	8	8	8	8	8	8
Operating Air Consumption	liters/min	1500	2000	1500	3000	3000	800	2000	1300	2000
Blowing Air Pressure	KG/cm²	35	30-35	35	35	35	30	30-35	30	30-35
Blowing Air Consumption	liters/min	2000	4600	1800	3800	2800	4000	8000	1500	7000
Cooling water Pressure	Kg/cm²	,4-5	,4-5	,4-5	,4-5	,4-5	4-5	4-5	4-5	,4-5
Cooling water Temperature	°C	.10-20	.10-20	.10-20	.10-20	.10-20	10-20	10-20	10-20	.10-20
Cooling water Flow	liters/min	100	100	100	100	100	100	100	100	100
Measurement (L x W x H)	m	2.6X2.2X2	2.6x2.25 x2.4	2.6X2.2X2	3.85X2.3X2	3.85X2.3X2.2	2.5X1.5X2	2.6X2.25X2.4	2.5X1.9X2.2	3.2x2.25 x2.4
Weight	Ton	3	3.5	3	4.2	4.2	2	3.5	2.3	4.5

Internal details of the Machine

---
