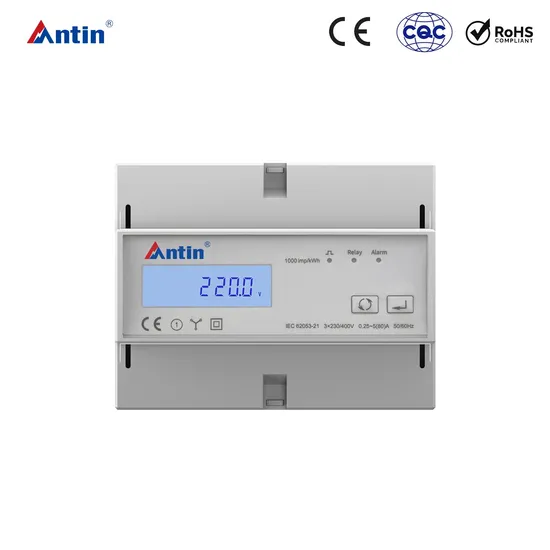

AT180G-YF Three Phase DIN Rail Peypayment Digital Power Meter Modbus RTU Electric Meter with RS485 Prepaid Energy Meter

Product Description

Product Description
AT180G-YF Three Phase Din Rail Prepaid Meter is a new generation of smart three-phase electronic energy meter. It meets the technical requirements of accuracy class 1of the IEC62053-21 standard for energy meter. It has a complete prepayment management system for energy sales management. The meter automatically deducts credit according to the electricity consumption. The recharge operation can be done remotely without any media like IC card. The meter has a two-level balance alarm function and an emergency credit function. The electricity supply will be automatically cut off when the user credit turns to zero, or reaches a preset value. It has RS485 communication interface and supports RS485 (9600 bps) high speed communication function, which is ideal for electric energy monitoring.
AT180G-YF series are featured in multi-function, multi-purpose, high stability and long life, which are suitable for real-time power monitoring system.
The meter has 1 pulse output, and the pulse constant, pulse width and output unit can be set.
Main Features: Multifunctional parameters measurement Support bi-directional power metering Clearable display of electricity usage Support direct access type, CT variable ratio access Support RS485 communication function Standard din rail mounting LCD display, white backlight LCD refresh time: 1 second, support manual page turning and automatic display rotation (can be set to switch) Product Parameters

Parameter		Value
Working Voltage	Rated value	230V AC
	Range	±20 of rated value
Measurement form		Valid value
Input current		Rated value 5A
Maximum current		Direct access type:100A,CT type: 1.2times of rated value
Short-time overcurrent		30 times the maximum current lasting 0.01 seconds
Input Frequency	Rated Value	50/60Hz
	Range	45-65Hz
Voltage withstand capacity	AC withstand voltage	4kV/1min
	Pulse withstand voltage	6kV-1.2μs waveform
Power consumption		≤2W
Pulse port output		Can be set
Pulse light output		Fixed to 1000imp/kWh
Maximum reading		999999.99kWh
Measurement accuracy	Voltage, current	0.5%
	Frequency	0.2%
	Power Factor	0.5%
	Power	±1%
	Energy	±1%
RS485 communication	Bus Type	RS485
	Communication protocol	Modbus RTU
Performance standard	Operating Humidity	≤90%,No condensation
	Storage Humidity	≤95%
	Operating Temperature	-25ºC~+55ºC
	Storage Temperature	-40ºC~+70ºC
	Installation category	VATII
	Protection class	IP51(Indoor)
	Insulation class	II
	Altitude	≤2000m

Dimension and Wiring

---
