Product Details
Product Description
Product Description

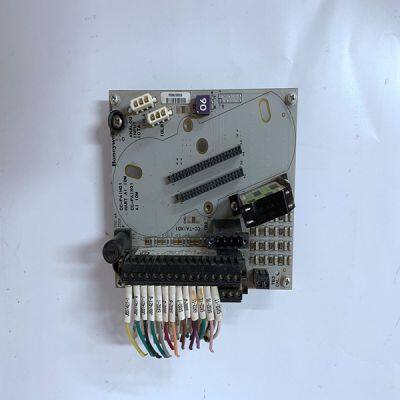

Brand:Honeywell
Type:CC-TAIX01
Origin:the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
Figure 2-1 illustrates the placement of the switches, jumper headers, connectors, and LED indicators on the MVME162. Manually configurable items include: ❏ SIM selection for serial port B configuration (J10) ❏ System controller selection (J1) ❏ Synchronous clock selection (J11) for Serial Port 1/Console ❏ Synchronous clock selection (J12) for Serial Port 2 ❏ SRAM backup power source selection (J20) ❏ EPROM size selection (J21) ❏ General-purpose readable register configuration (J22) The MVME162 has been factory tested and is shipped with the configurations described in the following sections. The MVME162’s required and factoryinstalled Debug Monitor, MVME162Bug (162Bug), operates with those factory settings. SIM Selection Port B of the MVME162’s Z85230 serial communications controller is configurable via a serial interface module (SIM) which is installed at connector J10 on the MVME162 board. Four serial interface modules are available: ❏ EIA-232-D (DCE and DTE) ❏ EIA-530 (DCE and DTE) You can change Port B from an EIA-232-D to an EIA-530 interface (or viceversa) by mounting the appropriate serial interface module. Port B is routed (via the SIM at J10) to the 25-pin DB25 front panel connector marked SERIAL PORT 2. For the location of SIM connector J10 on the MVME162, refer to Figure 2-1. Figure 2-2 illustrates the secondary side (bottom) of a serial interface module, showing the J1 connector which plugs into SIM connector J10 on the MVME162. Figure 2-3 (sheets 3-6), Figure 2-4 (sheets 3-4), and Figure 2-5 illustrate the configurations available for Port B. For the part numbers of the serial interface modules, refer to Table 2-1. The part numbers are ordinarily printed on the primary side (top) of the SIMs, but may be found on the secondary side in some versions. If you need to replace an existing serial interface module with a SIM of another type, go to Removal of Existing SIM below. If there is no SIM on the main board, skip to Installation of New SIM.
>>
