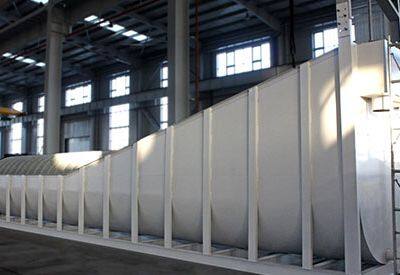

Spiral classifier is commonly used in the grinding circuit of the beneficiation as the pre-classification and inspect classification machine and also in the ore washing and desliming operation. It is forms a closed cycle easily with the grinding machines with advantages of simple structure, reliable work and easy operation.
Performance Characteristics:
1. Simple structure, reliable running and easy operation.
2. It mechanically classifies through the mechanism of different sedimentation speed of the solid particle in liquid due to different size and different specific gravity.
3.It can classify the ground material powder from the grinder spiral the coarse grain into material inlet of grinder through the spiral chip and discharge the classified fine grain from overflow surface.
4. Optional Discharge Method. Its base is made from channel steel, while its body is weld from a steel plate.
5. The lower support of spiral bearing is of the engine-bearing structure of good wear-resistance and durability;
WORKING PRINCIPLE
High spiral classifier operation: the grinded pulp is fed into tank from the inlet in the middle of settlement region, and the
slurry classification sedimentation area is under the inclined tank. The spiral with low speed rotation stirs the slurry, so that the fine particles rise, and the coarse particles sinks to the bottom of tank. Overflow weir is above the bearing center which is under screw shaft, and is underneath overflow end.
PRODUCT PARAMETERS
Types
| Model
| Spiral Diameter(mm)
| Sink Length(mm)
| Spiral Speed(r/min)
| Capacity（t/d）
| Motor Power（kw）
| Weight（t）
|
Sand Back
| Overflow
| Transmission
| /Elevate Hoist
|
High Weir Spiral Classifier
| FG7.5
| 750
| 5500
| 6-10
| 340-570
| 65
| 1.1
| Manual Control
| 2.7
|
FG-10
| 1000
| 6500
| 5.0-8.0
| 675-1080
| 110
| 5.5
| Manual Control
| 4.43
|
FG12
| 1200
| 6500
| 5.0-8.0
| 1170-1870
| 155
| 5.5
| 1.5
| 8.7
|
FG15
| 1500
| 8400
| 4.0-6.0
| 1830-2740
| 235
| 7.5
| 2.2
| 12.5
|
FG20
| 2000
| 8400
| 4.0-6.0
| 3240-5400
| 400
| 11
| 2.8
| 20.5
|
FG24
| 2400
| 9210
| 3.6
| 4560-7450
| 580
| 15
| 3.0
| 25.6
|
FG30
| 3000
| 12500
| 3.2
| 11650
| 890
| 22
| 4.0
| 42.8
|
Submerged Spiral Classifier
| 2FG12
| 1200
| 6500
| 5.0-8.0
| 2340-3740
| 310
| 5.5×2
| 1.5×2
| 14.0
|
2FG15
| 1500
| 8400
| 4.0-6.0
| 3660-5480
| 470
| 7.5×2
| 1.5×2
| 21.1
|
2FG20
| 2000
| 8400
| 3.0-5.5
| 7780-11880
| 800
| 11×2
| 2.8×2
| 36.5
|
2FG24
| 2400
| 9210
| 3.6
| 13600
| 1160
| 15×2
| 3×2
| 46.8
|
2FG30
| 3000
| 12500
| 3.2
| 14600-23400
| 1785
| 45
| 4×2
| 73
|
FG12
| 1200
| 8400
| 5.0-8.0
| 1170-1870
| 120
| 7.5
| 2.2
| 10.4
|
FG15
| 1500
| 10500
| 4.0-6.0
| 1830-2740
| 185
| 7.5
| 2.2
| 16.8
|
FG20
| 2000
| 12900
| 2.0-5.5
| 3895-5940
| 320
| 15
| 2.8
| 29.1
|
FG24
| 2400
| 14200
| 2.5-4.0
| 4650-7450
| 455
| 18.5
| 4
| 41.0
|
FG30
| 3000
| 14300
| 3.2
| 11625
| 705
| 30
| 4
| 56.8
|
2FG15
| 1500
| 10500
| 4.0-6.0
| 2280-5480
| 370
| 7.5×2
| 1.5×2
| 30.7
|
2FG20
| 2000
| 12900
| 3.0-5.5
| 6480-11800
| 640
| 11×2
| 3×2
| 50.0
|
2FG24
| 2400
| 14200
| 3.67
| 9300-14900
| 910
| 18.5×2
| 4×2
| 67.9
|
2FG30
| 3000
| 14300
| 3.2
| 23300
| 1400
| 45
| 4×2
| 85.3
|
