Hot Sale New Rock Crushing Machine with Capacity 50-350tph

Product Description

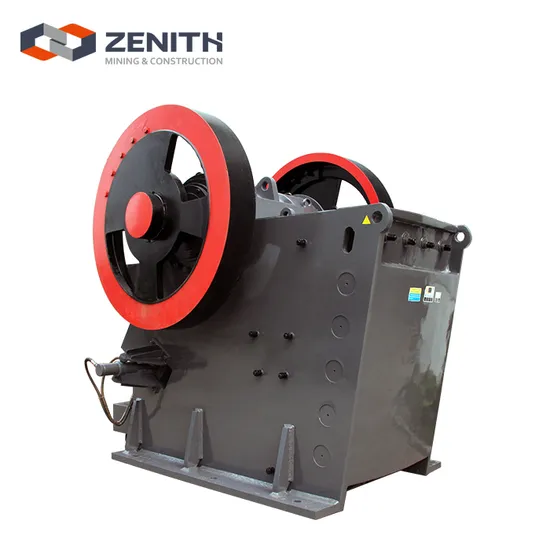

Hot sale new rock crushing machine with capacity 50-350TPH

new rock crushing machine is one of the most popular stone crushing machines used in mining industry and it is ideally suitable for both primary and secondary crushing. PEW series single toggle jaw crusher has the features of great crushing ratio and uniform sizes. It can be used to crush materials with compressive resistance less than 320 MPA. It is widely used in various industries, such as mining, smelting, road and railway construction, chemical industry, etc. new rock crushing machine is used for primary crushing and secondary crushing.The maximum compression strength of materials to be crushed is 320MPA. Our design and production are of high position both at home and abroad.

new rock crushing machine working principle:

This new rock crushing machine adopts electric motor as the power, and the eccentric shaft is revolved by an electric motor through v-belts. It causes the swing jaw to follow the pre concerted path and crush the in-fed materials, and then the materials will be crushed in the crushing chamber which is composed of the stationary jaw plate, swing jaw plate and the liner plate. Finally the finished materials are discharged from the lower part of machine.

Please carefully examine the fasteners, especially the lubrication components and bolts before starting the machine. Enough oil is needed on each lubrication component. Fasten the loose bolts, clean the crushing cavity, and then start the machine. Insufficient load or over load is not allowed. Moving jaw plate, fixed jaw plate, side guard plate and roof plate are wearing parts, and much attention should be paid to them.

new rock crushing machine features:

1. Simple structure, easy maintenance;
2. High crushing ratio, even output granularity;
3. High reliability, low investment;
4. Low noise, less dust.

new rock crushing machine parameters:

Model	Feed Opening (mm)	Max Feeding (mm)	Discharge Opening (mm)	REV (r/min)	Power (kw)	Motor Model	Machine Size (mm)
PEW250×1000	250×1000	220	20-40	330	6-37	Y250M-6/37	1400×1850×1310
PEW250×1200	250×1200	220	20-40	330	6-37	Y250M-6/37	1400×2050×1310
PEW400×600	400×600	350	35-85	250	6-37	Y250M-6/37	1920×1460×1840
PEW760	760×1100	620	75-200	270	6-110	Y315L1-6/110	2600×2500×2200
PEW860	860×1100	720	100-225	240	6-132	Y315L2-6/132	3300×2320×3120
PEW1100	1100×1200	930	150-275	210	8-185	Y355L1-8/185	4140×2660×3560

---
