Ppca 128 Series Double Row Plenum Pulse Bag Dust Collector

Product Description

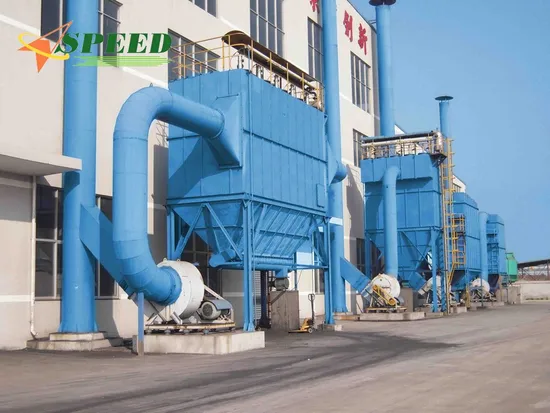

PPCA Type Double Row Series Plenum Pulse Bag Dust Collector
Description:
Plenum Pulse dust collector is a high efficienfy dust collector. PPCA series of large pulse length bag filter is our technical personnel from domestic and foreign advanced technologies based on thermal power plant ,cement plant , metallurgy industry, chemical industry, the characteristics of smoke, for the successful development of power plant boiler, cement rotary kiln, steel mills, coke oven blast furnace, and other special high long bag filter.
It combines the sub-room cleaning and the characteristics of pulse cleaning, to overcome the general sub-room cleaning and the general lack of intensity pulse cleaning dust and then attached to the shortcomings of the bag and longer air force into full play the role of cleaning. It is s a high collection efficiency, stable, reliable performance, easy maintenance of large bag filter dust removal equipment.
Parameter:

TYPE PPCA128 Double Series		PPCA128-2X6	PPCA128-2X7	PPCA128-2X8	PPCA128-2X9	PPCA128-2X10	PPCA128-2X11	PPCA128-2X12	PPCA128-2X13	PPCA128-2X14
air volume(m 3 /h)		134600	15700	179400	201900	224300	147600	269100	291600	314000
filter air speed(m/min)		1.2	1.2	1.2	1.2	1.2	1.2	1.2	1.2	1.2
total filter area(m 2 )		1869	2128	2492	2804	3115	3427	3738	4050	4361
net filter area(m 2 )		1713	2025	2336	2648	2959	3271	3582	3894	4205
No. of room		12	14	16	18	20	22	24	26	28
total No. of bag		1536	1792	2084	2304	2560	2816	3072	3328	3584
pressure(Pa)		1470-1770
dust concentration at inlet (g/m3)		<1000
dust concentration at outlet (g/m3))		30
dust collector gas under negative pressure (Pa)		6860
pressure air for cleaning	pressure (Pa)	(5-7)X10 5
	gas consumption (m3/min)	7	8.3	9.5	10.7	12	13.1	14.3	15.5	16.7
pulse valve (with solenoid valve)	quantity (set)	24	28	32	36	40	44	48	52	56
	size (inch)	2-1/2″
poppet valve (with cylinder)	quantity (set)	12	14	16	18	20	22	24	26	28
	size (inch)	poppet valve board diameter:φ725,cylinder diameter:φ100.
rotary valve and specification(mm)		double flap valve:305X940mm electric double flap valve specification:330X990,rotation speed:175r/min,retarder motor:XWD4-7-1/37,power:4kW
		chute specification:300mm,chute air volume:2.0m 3 /m 2 ( breathable layer),wind pressure:6860Pa The fan types and pipeline collocation are in charge of the chooser. If dust concentration at inlet is larger than 700g/m 3 ,you should choose the dust collector with screw conveyor.
dust cleaning program controller		voltage input and output both are 220V,controller is matching supplied by the manufacturing factory,details please refer to controller instructions.
filter bag specifiation and material		diameterXlength:φ130X3060mm,polyester needle felt weight:450g/m 2 ,using temperature:120° (PPCS(A)128 type,filter bag specification can also be φ130X2450mm)
remarks: 1 The net filter area in the form means in a certain room dust cleaning filter area. 2 Gas consumption in the form means factory centralized gas supply ,for example, when set up an alone air compressor, gas consumption in the form need to be multiplied 1.3. 3\ The air volume in the form got when the gross filter wind speed is 1.2m/min, which only be true when the dust concentration around the user is smaller than 30g/m3 and the net filter wind speed is not sure. You can choose directly according to the air volume marked in the form. In genaral, you ought to follow the steps in the illustrated book to choose the types.

Application: 1 iron, steel mill, ferroalloy plant, refractory plant, foundry, power plant of flue gas dedusting system. 2 Wastes incinerator, coal fired boilers. 3 Asphalt mixing, building materials, cement ceramic, lime and gypsum and other production sites. 4 Aluminum electrolysis liquid and solid separation. 5.thermal power plant ,cement plant , metallurgy industry, chemical industry, the characteristics of smoke,
If you want to get the price, please send us the detailed materials information, such as the hardness of raw materials, feeding size, you required output size, capacity and other special requirement. Our engineer will choose the optimum type and our salesman will send you the reasonable price. Thank you.

---
