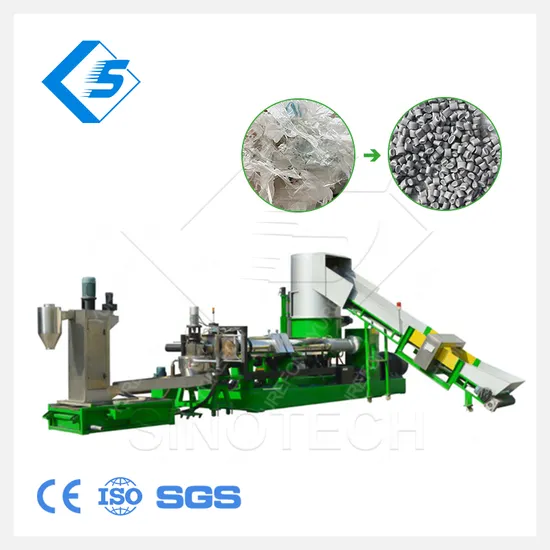

Sinotech HDPE PE PP LDPE Waste Soft Film Woven Bags Pet PA Fabric Plastic Recycling Granulators Machine

Product Description

Product Description
This SJ series PP PE film pelletizing line used compactor, mainly for PP, PE plastic film (such as film, bags, woven bag, jumbo bags etc) crushed to granulation, make plastic pellet full, even and without porosity, suitable for all kinds of waste plastic regeneration granulation recycling.
This SJ series compacting and pelletizing system combines function of crushing, compacting, plasticization and pelletizing to one step, used for recycling and waste plastic materials. It is equipped with automatic temperature, electric change filter screen. After loading the feeder, the crushed material can be granulated. Granulator adopts speed regulating motor. Material can be cut according to the feed rate of the extruder.
According to different material and different customer demand, we provide customer with various options, such as different L/D ratios, multiple exhaust screw structures, single and double stage design, different pelletizing die. The capacity can be 100-800kg/h.
Process flow:
Water ring cutting system:
Belt conveyor→Compactor→single shaft extruder→Hydralic screen exchanger→Die mould→Water cooling tank→Dewatering machine→Storage silo
Strand cutting system:
Belt conveyor→Compactor→single shaft extruder→Hydralic screen exchanger→Die mould→Water cooling tank→Air blower→Pelletizer→Storage silo
Product Parameters

Single stage
Model	Capacity(kg/h)	Motor power(kw)	Screw diameter(mm)	L/D
SJ75	90-120	45	75	33
SJ85	150-200	55	85	33
SJ100	200-300	90	100	30-33
SJ120	350-400	132	120	30-33
SJ150	550-600	185	150	30-33
SJ180	700-800	250	180	30-33
Double stage
SJ75+SJ90	110-120	37+22	75	30+12:1
SJ85+SJ100	150-200	55+30	85	30+12:1
SJ100+SJ120	200-300	90+37	100	30+12:1
SJ120+SJ150	300-450	132+45	120	30+12:1
SJ150+SJ180	500-650	185+55	150	30+12:1
SJ180+SJ200	700-800	250+75	180	30+12:1
Two cutting types optional: Strand cutter and Water ring cutter. We can provide you with pelletizing machine as per your requirements.

Detailed Photos
01 Belt Conveyor
Motor drives of conveyor belt and hauling device cooperate with abb inverter. feeding speed ofconveyor belt or roll hauling off is fully automatic based on how full the compactor's roonis. metal detector can be combined with belt conveyand can interlock with control system, to warn andstop the system, in case that metal is found in feeding section
02 Compactor
It can handle both hard and soft materials. The sliding gate controls the residence time of the material in the compactor to achieve the effect of pre-drying and ensure that clean and dry material enters the barrel.Material that fails to achieve the treatment effect will not be able to enter the next process. PLC accurately controls the quantity of' forced feeding materials to ensure production capacity

03 Single Screw Extruder
A specialized single screw extruder applied to gently melt the pre-compacted material. The plastic scraps will be well melted. with double-zone Vacuum degassing system, volatile such as low molecular and moisture will be removed efficiency especially suitable to heavy printed film and material with water content.

04 Hydraulic Screen Changer
A regular single-platel/piston double-station screen changer or non-stop double-platel/ piston four-station can be installed on head of extruder to present significant filtration performance. The requirements on the filter technology depend heavily on the quality of the input material as well as the planned use of granules

05 Water Ring Cutting System
Water ring pelletizing system set as the standard granulating method. self-adjusting pelletizing head for the best granulate quality and long uptime thanks to consistently correct blades pressure. The production line can be equipped with three kinds of granulation methods: water circumferential cutting. water-cooled stretching automatic stretching or underwater granulation.

06 Vibration Dry Machine
Advanced dewatering vibration sieve combining with horizontal-type centrifugal dewatering present high-performance dried pellets and lower energy consumption.

07 Production Silo
Storage in the production silo

Production Workshop

Company Profile


Certifications

Packaging & Shipping

FAQ
Q: How can we get the exact price of plastic machine?
A: Contact us with bottle volume and capacity request. Then we will recommend you suitable model machine soon.
Q: Do you provide any spare parts with machine?
A: Yes, we offer all necessary spare parts together with machine sending and 3 days spare parts delivery after machine sale.(contact us for packing list )
Q: How about your after-sale service?
A: We offer manual instruction and engineer training before loading, after shipment we provide 24 hours online support, video technical support or field installation assist.
Q: What is the lead time?
A: We have standard model machine in stock.It can be delivery within 1 week. If need to make mould, the delivery time need half month after drawing confirmed.
Q: What is the warranty period for your machine?
A: 12 months warranty for components and technical support.
Q: Do you provide custom machines?
A: Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.
Q: What's the advantage of SINO-TECH?
A: We provide customers with turnkey projects. Including plant design, blow molding machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time for customer.
