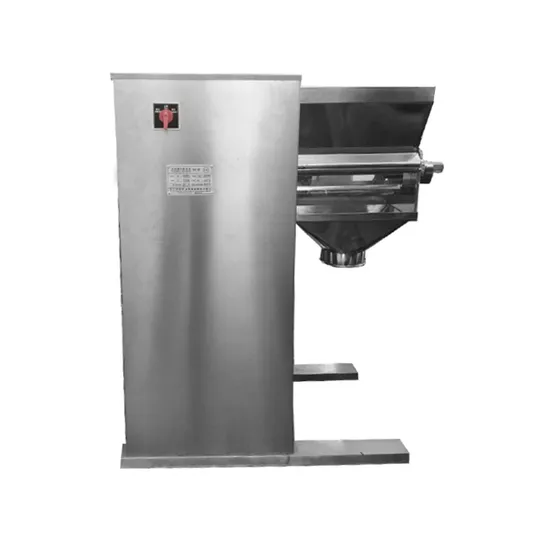

Yk160 Dry Wet Powder Extruding Rotary Drum Pendular Granulator

Product Description

Dry wet powder extruding rotary drum pendular granulator
YK granulator is a kind of machine which can make the mixed powder into particles, and also can crush the block dry material into the required particles. It is suitable for small batch production in pharmaceutical, chemical, food, scientific research institutions, laboratories, hospitals and small health products factories.
The wet powder material or block dry material is made into the required particles, and the screen mesh is made of nylon or stainless steel, which is easy to assemble and disassemble, and the tightness is adjustable. The main parts of the machine are enclosed in the machine body with lubrication system, so the production process runs smoothly. The whole machine is made of stainless steel. The quality of the granules are obviously improved to meet the GMP standards.

Model	YK-60	YK-90	YK-160	SYK-160 Dualdrums
Spindle speed(r/min)	60	90	160	160*2
Capacity(kg/h)	20-30	50-100	200-300	Dried800-1200 Wet500-700
Motor power(kw)	0.55	0.75	2.2	5.5
Drum speed(r/min)	46	46	46	46
Swing amplitude(°)	›360°	›360°	›360°	›360°
Overall size(mm)	330*545*625	370*750*830	605*950*1100	620*1130*1265
Hopper Size(mm)	210*210	265*315	400*420	410*570
Weight(kg)	63	92	240	550

FAQ How to Order
1. Customer send us an inquiry.
2. Confirmmachine type, order quantity, price, lead time, payment term etc.
3.Our sales send the Proforma Invoice with company seal.
4. Customer make the payment for deposit and send us Bank receipt.
5. Inform the clients that we have got the payment,and will arrange the production according to yourrequest, inform the estimated time
6. Production products photos will send to you for approval.
7. Clients make payment for balance and Ship the goods .
8. Order is finished when you receive the goods and satisfy with them .
9. Feedback to us boutQuality , Service, Market Feedback & Suggestion.And we can do better
About after sell service
Usually machine guarantee time is about 1 year . Within guarantee time . Machine breaking caused bymachine itself design defect , we are responsible for it .we can provided free charge breaking part .If machine breaking caused by humane factor , user need take responsibility for it , we will providedtechnical support .
About goods shipping
We have long time working shipping forwarder. We can do our best to send machine to your port safe and quickly.
About our online Service
24 hours online to solve any problem .
Your email will be reply within 12 hours .
Your satisfy is our pursuit .sincerely hope our cooperation

---
