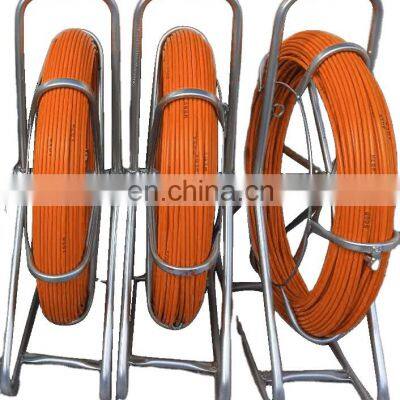

Product DescriptionFish tape fiberglass reel wire cable push-pull running rod puller detectable 6mm 500m FRP duct rodderIntroduction of duct rodderFiberglass duct rodder, also named as snake rod, duct rodding cane and rod puller, is a powerful auxiliary tool used for rope traction in the pipe. Smooth and flexible surface of the duct rodder can make the rope or cable pass through narrow channel easily. According to the design, the duct rodder can be divided into fiberglass duct rodder and tracable duct rodder. According to the movement type, it can be divided into wheeled duct rodder or portable duct rodder. It is widely used in track construction where cable and electric wire is hard to be pulled into cable, pipes and conduits. Product SpecificationSpecificationRod diameter3mm ~ 18mmRod length10m ~ 500mFrame size1300mm*450mm*1330mm, 1200mm*420mm*1220mm, 980mm*350mm*700mm, 680mm*240mm*700mm, 4200mm*1800mm*400mmMaterialRod insideFiberglass, resinRod outsideABS, PP, HDPEFrameSteelWheelRubberPhysical characterDensity55g/mWorking temperature-40℃ ~ 80℃Minimum bending radius295mmMinimum pulling strength4000N+/-5%Consistency of rod137gr/mElongation at break2.5% ~ 3%Flexural Modulus>46.500MpaProduct ComponentComponents and functionMeter mark: used for measuring distance.Frame: reinforced steel frame make the push-pull easily.Fiberglass duct rodder: tensile strength bending performance.Copper drawing head: durable, smooth, strong, and do not fall off, suitable for fiberglass rod diameter 4.5mm-6mm.Wheel: rubber material, non-inflatable, heavy-duty.Rod guide: used to push and draw back the fiberglass rod easily, avoiding unnecessary friction and wear. Rod grapple: commonly used to pass through the conduit when the conduit is plugged with sand, soil or other things. Hand break: to help stop reeling of the rod. Product FeatureFeature of FRP duct rodderHigh tensile strengthFriction resistant surfaceCorrosion resistanceUV resistanceWater resistanceEasy operationLong service time.Production ProcessThe rod is made of fiberglass and high strength resin at high temperature. It is coated by high density polyethylene engineering plastic as its protected layer, which makes the duct rodder surface smooth, durable, corrosion resistant and good insulation performance, making the duct rodder safe in cable occupied duct.Package and TransportationFiberglass duct rodder is packed into strong carto, plastic wrap, or wooden casen which is suitable for long distance transport. Color label is available as per request on the carton. For LCL shipment, duct rodder would be packed with crates. About usFAQQ: Why chose Hebei Lanyu?A: We have more than 10 years' experience in producing rubber and plastic products offering products with the highest quality and the most competitive price.Q: Can I get a discount for large quantity?A: That's a good question. When you place an order over USD20000, you can get a surprising discount. Q: Can you delivery goods on time?A: Yes. If there is the special case of force majeure, we will inform you in advance.Q : What is the port of loading?A: In general,Tianjin/Qingdao/Ningbo, other ports as customer request.Q: Can you accept customized? A: Yes, we can open new mold to produce the fills as your required. If your order quantity is larger, the mold cost will be free.If you are interested in our products, or if you have any question, welcome to contact us freely, we will try our best to give some help!
>>
