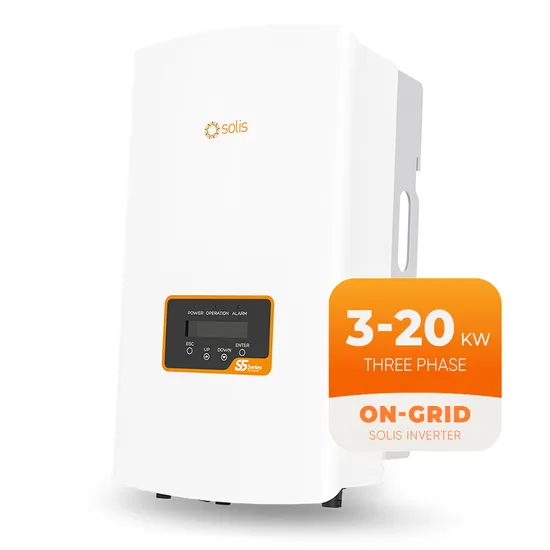

China Brand Solis 6kw 15kw 18kw 20kw 25kw 60kw Three Phase Hybrid on Grid Solar Inverter

US$179.00-759.00 1 Piece (MOQ)

Basic Info.

Model NO.
Hybrid 3-20kw
Nature of Source Flow
Active Inverter
Phase
Single
Output Power
3-6kw
Certification
SAA, CE, ROHS, ISO9001, CCC
Brand
Solis
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Transport Package
Carton Box
Specification
333*579*253 mm
Trademark
Solis
Origin
China
Production Capacity
50000/Week

Product Description

Product Description
Model Name700-4G1000-4G1500-4G2000-4G2500-4G3000-4G3600-4G
Input DC
Recommended max. PV power0.9kW1.2kW1.8kW2.3kW3kW3.5kW4kW
Max. input voltage600V
Rated voltage200V330V
Start-up voltage60V90V
MPPT voltage range50-500V80-500V
Max. input current11A19A
Max. short circuit current17.2A30A
MPPT number/Max. input strings number1/11/2
Output AC
Rated output power0.7kW1kW1.5kW2kW2.5kW3kW3.6kW
Max. apparent output power0.8kVA1.1kVA1.7kVA2.2kVA2.8kVA3.3kVA3.6kVA
Max. output power0.8kW1.1kW1.7kW2.2kW2.8kW3.3kW3.6kW
Rated grid voltage1/N/PE, 220/230V
Rated grid frequency50/60Hz
Rated grid output current3.2A/3.0A4.5A/4.3A6.8A/6.5A9.1A/8.7A11.4A/10.9A13.6A/13A16A
Max. output current4.4A5.2A8.1A10.5A13.3A15.7A16A
Power Factor>0.99 (0.8 leading - 0.8 lagging)
THDi<3%
Efficiency
Max. efficiency97.2%97.5%
EU efficiency96.5%96.8%
Protection
DC reverse-polarity protectionYes
Short circuit protectionYes
Output over current protectionYes
Surge protectionYes
Grid monitoringYes
Anti-islanding protectionYes
Temperature protectionYes
Integrated DC switchOptional
General Data
Dimensions (W*H*D)310*373*160 mm
Weight7.4kg7.7kg
TopologyTransformerless
Self consumption<1W (night)
Operating ambient temperature range-25 ~ +60°C
Relative humidity0-100%
Ingress protectionIP65
Cooling conceptNatural convection
Max. operation altitude4000m
Grid connection standardVDE-AR-N 4105, VDE V 0124, VDE V 0126-1-1, UTE C15-712-1, NRS 097-1-2, G98, G99, EN 50549-1/-2, RD 1699, UNE 206006, UNE 206007-1,IEC 61727
Safety/EMC standardIEC 62109-1/-2, IEC 62116, EN 61000-6-1/-2/-3/-4
Features
DC connectionMC4 connector
AC connectionQuick connection plug
DisplayLCD
CommunicationRS485, Optional: Wi-Fi, GPRS
Models2.5K3K3.6K4K4.6K5K6K
Input DC
Recommended max. PV power3kW3.5kW4.2kW4.6kW5.3kW5.8kW6.6kW
Max. input voltage550V600V
Rated voltage250V330V
Start-up voltage60V120V
MPPT voltage range50-450V90-520V
Max. input current11A/11A
Max. short circuit current17.2A/17.2A
MPPT number/Max. input strings number2/2
Output AC
Rated output power2.5kW3kW3.6kW4kW4.6kW5kW6kW
Max. apparent output power2.8kVA3.3kVA4kVA4.4kVA5kVA5kVA6kVA
Max. output power2.8kW3.3kW4kW4.4kW5kW5kW6kW
Rated grid voltage1/N/PE, 220/230V
Rated grid frequency50/60Hz
Rated grid output current11.4A/10.9A13.6A/13.0A16.0A/15.7A18.2A/17.4A20.9A/20.0A22.7A/21.7A27.3A
Max. output current13.3A15.7A16.0A21.0A23.8A25.0A27.3A
Power Factor>0.99 (0.8 leading - 0.8 lagging)
THDi<3%
Efficiency
Max. efficiency97.8%98.1%
EU efficiency97.1%97.3%
Protection
DC reverse-polarity protectionYes
Short circuit protectionYes
Output over current protectionYes
Surge protectionYes
Grid monitoringYes
Anti-islanding protectionYes
Temperature protectionYes
Integrated DC switchOptional
General Data
Dimensions (W*H*D)310*543*160 mm
Weight11.5kg
TopologyTransformerless
Self consumption<1W (night)
Operating ambient temperature range-25 ~ +60°C
Relative humidity0-100%
Ingress protectionIP65
Cooling conceptNatural convection
Max. operation altitude4000m
Grid connection standardVDE-AR-N 4105, VDE V 0124, VDE V 0126-1-1, UTE C15-712-1, NRS 097-1-2, G98, G99, EN 50549-1/-2, RD 1699, UNE 206006, UNE 206007-1, IEC 61727
Safety/EMC standardIEC 62109-1/-2, IEC 62116, EN 61000-6-2/-3
Features
DC connectionMC4 connector
AC connectionQuick connection plug
DisplayLCD
CommunicationRS485, Optional: Wi-Fi, GPRS
CommunicationRS485, Optional: Wi-Fi, GPRS
Models7K8K9K10K
Input DC
Recommended max. PV power10.5 kW12 kW13.5 kW15 kW
Max. input voltage600 V
Rated voltage330 V
Start-up voltage120 V
MPPT voltage range100-500 V
Max. input current14 A / 14 A / 14 A
Max. short circuit current22 A / 22 A / 22 A
MPPT number/Max. input strings number3 / 3
Output AC
Rated output power7 kW8 kW9 kW10 kW
Max. apparent output power7.7 kVA8.8 kVA9.9 kVA10 kVA
Max. output power7.7 kW8.8 kW9.9 kW10 kW
Rated grid voltage1/N/PE, 220 V / 230 V
Rated grid frequency50 Hz / 60 Hz
Rated grid output current31.8 A / 30.4 A36.4 A / 34.8 A40.9 A / 39.1 A45.5 A / 43.5 A
Max. output current33.7 A36.6 A41.3 A45.9 A
Power factor>0.99 (0.8 leading - 0.8 lagging)
THDi<3%
Efficiency
Max. efficiency98.0%
EU efficiency97.1%
Protection
DC reverse-polarity protectionYes
Short circuit protectionYes
Output over current protectionYes
Surge protectionYes
Grid monitoringYes
Anti-islanding protectionYes
Temperature protectionYes
Integrated AFCI (DC arc-fault circuit protection)Yes (1)
Integrated DC switchOptional
General Data
Dimensions (W*H*D)333*579*253 mm
Weight18.5 kg
TopologyTransformerless
Self-consumption (night)<1 W
Operating ambient temperature range-25 ~ +60°C
Relative humidity0-100%
Ingress protectionIP66
Cooling conceptNatural convection
Max. operation altitude4000 m
Grid connection standardG99, EN 50549-1, IEC 62116, IEC 61727, IEC60068, IEC 61683, EN 50530
Safety/EMC standardIEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4
Features
DC connectionMC4 connector
AC connectionOT Terminal
DisplayLCD
CommunicationRS485, Optional: Wi-Fi, GPRS
Models3K4K5K6K8K10K12K15K20K
Input DC
Recommended max. PV power4.5 kW6 kW7.5 kW9 kW12 kW15 kW18 kW22.5 kW30 kW
Max. input voltage1100 V
Rated voltage600 V
Start-up voltage180 V
MPPT voltage range160-1000 V
Max. input current16 A / 16 A32 A / 32 A
Max. short circuit current20 A / 20 A40 A / 40 A
MPPT number/Max. input strings number2/22/4
Output AC
Rated output power3 kW4 kW5 kW6 kW8 kW10 kW12 kW15 kW20 kW
Max. apparent output power3.3 kVA4.4 kVA5.5 kVA6.6 kVA8.8 kVA11 kVA13.2 kVA16.5 kVA22 kVA
Max. output power3.3 kW4.4 kW5.5 kW6.6 kW8.8 kW11 kW13.2 kW16.5 kW22 kW
Rated grid voltage3/N/PE, 220 V / 380 V, 230 V / 400 V
Rated grid frequency50 Hz / 60 Hz
Rated grid output current4.6 A /4.3 A6.1 A /5.8 A7.6 A /7.2 A9.1 A /8.7 A12.2 A /11.5 A15.2 A /14.4 A18.2 A /17.3 A22.8 A /21.7 A30.4 A /28.9 A
Max. output current4.7 A6.4 A7.9 A9.5 A12.7 A15.9 A19.1 A23.8 A31.8 A
Power factor>0.99 (0.8 leading - 0.8 lagging)
THDi<2%
Efficiency
Max. efficiency98.3%98.5%98.6%98.7%
EU efficiency97.7%97.9%98.0%98.1%
Protection
DC reverse-polarity protectionYes
Short circuit protectionYes
Output over current protectionYes
Surge protectionYes
Grid monitoringYes
Anti-islanding protectionYes
Temperature protectionYes
Integrated AFCI (DC arc-fault circuit protection)Yes (1)
Integrated DC switchOptional
General Data
Dimensions (W*H*D)310*563*219 mm
Weight17.8 kg18.8 kg20 kg
TopologyTransformerless
Self-consumption (night)<1 W
Operating ambient temperature range-25 ~ +60°C
Relative humidity0-100%
Ingress protectionIP66
Cooling conceptNatural convectionIntelligent redundant fan-cooling
Max. operation altitude4000 m
Grid connection standardG99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 /UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530
Safety/EMC standardIEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4
Features
DC connectionMC4 connector
AC connectionQuick connection plug
DisplayLCD
CommunicationRS485, Optional: Wi-Fi, GPRS

Product SeriesOn Grid Residential Inverter0.7-10KW1-3 MPPTs
Single Phase 220-240V 50/60HzOn Grid Residential Inverter3-20KW2 MPPTs
Three Phase 380-415V 50/60HzOn Grid Commercial Inverter25-70KW5/6 MPPTs
Three Phase 380-415V 50/60HzOn Grid Commercial Inverter50-125KW10 MPPTs
Three Phase 380-415V 50/60HzOn Grid Utility Scale Inverter215-255KW9-14 MPPTs
Three Phase 800V 50/60HzEnergy Storage Inverter3-6KWBattery Voltage: 42-58V
Single Phase 220-240V 50/60HzEnergy Storage Inverter5-10KWBattery Voltage: 120-600V
Three Phase 380-415V 50/60HzApplication
