Product Details

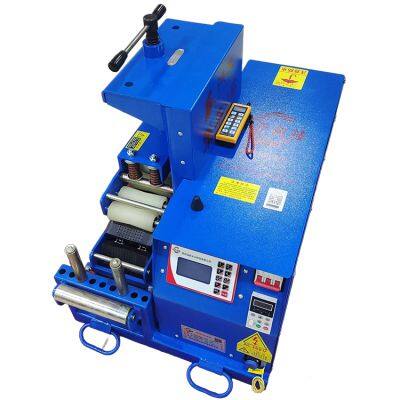

Product Description
Product Description
Product Features:
Flexible Power Supply: Standard power supply of AC380V, customizable to AC220V, adaptable to different power environments.
Intelligent Control: Equipped with 4 gear positions + stepless speed adjustment, supports control panel and remote control operation, with multi-unit linkage for improved work efficiency.
Efficient Power: Motor power of 3000W, featuring high-quality copper-core motor for stable performance and long service life.
Precise Speed Control: Conveying speed of 0-26m/min, optimal working speed of 10-16m/min (2nd and 3rd gears), suitable for various job requirements.
Strong Pulling Force: Maximum pulling force of 6000N, suitable for cable laying with diameters of 1-18cm.
Compact and Lightweight: Dimensions of 90x53x67cm, weight of approximately 125kg, easy to transport and operate.
Durable Design: Nylon pressure wheels combined with high-quality rubber wheels, carefully designed for extended service life.
Multi-functional Operation: Supports panel + remote control modes, start-stop at any time, push-pull switching with one button, flexible and convenient operation.
Linkage Function: Equipped with a linkage module, supports multi-unit linkage for large-scale operations.
Application Scenarios:
Suitable for cable laying in industries such as power, telecommunications, and construction.
Ideal for working conditions with limited space or frequent movement requirements.
Multi-unit linkage function is perfect for large-scale cable laying projects, improving overall work efficiency.
Technical Parameters:
Power Supply: AC380V (standard), AC220V (customizable)
Motor Power: 3000W
Conveying Speed: 0-26m/min
Optimal Speed: 10-16m/min (2nd and 3rd gears)
Maximum Pulling Force: 6000N
Cable Diameter: 1-18cm
Dimensions: 90x53x67cm
Weight: Approximately 125kg
Product Advantages:
Compact and lightweight, easy to transport and operate, adaptable to various working conditions.
Remote control operation for greater convenience and flexibility.
Four gear positions + stepless speed adjustment, start-stop at any time, push-pull switching with one button, meeting precise job requirements.
Equipped with a linkage module, supports multi-unit linkage for large-scale operations.
Nylon pressure wheels combined with high-quality rubber wheels, durable and long-lasting.
>>
