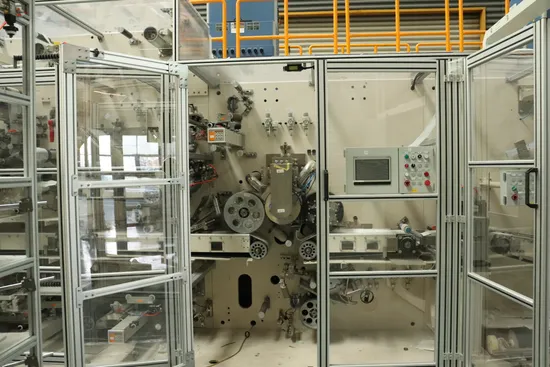

Full Servo Baby Diaper Machine Product Description
| CSG-BD800T FULL SERVO BABY PULL UP PANTS MACHINE |
|
| Product Stucture |
| 1 | Normal baby diaper |
| 2 | Circle waist baby diaper |
| 3 | T type baby diaper |
| Main Technical Parameters |
| 1 | Supply,3 phase,380V,50Hz |
| 2 | Power:420KW(Excluding hot melt applicator and Compressor) |
| 3 | Production speed:500/600/700pcs/min |
| 4 | Qualification:≥97% |
| 5 | Outside dimension(m):35 x 9 x 5 (L×W×H)( for reference) |
| Main Function and Features |
| (I)Mechanical part |
| 1 | Pulp SAP mixing product and laminating core product are compatible |
| 2 | High-density ultra-thin fluff core forming drum system,good absorbability,and low reverse osmosis |
| 3 | S cut side tape online making, no waste application |
| 4 | 3D material online making application (option) |
| 5 | Laminating core online making application(option) |
| 6 | Top sheet 3-pcs laminating ultrasonic process(option) |
| 7 | With web guiding system |
| 8 | Packing machine or stacker (option) |
| 9 | Dust collection filter system (option) |
| (II)Electric part |
| 1 | Full servo motor drive and PLC control |
| 2 | One button for size change, quick and less waste |
| 3 | High-precision tension control system,active un-winding and auto-splicing system |
| 4 | i-MAS Intelligent equipment mangement and analysis system |
| 5 | Material auto-splicing joint limit at 3m, and decrease material wastage |
| 6 | Material auto-splicing inspect,broken and lost alarm system |
| 7 | Material picture online positioning application |
| 8 | Vision inspection system (option) |
| 9 | Elastic BTSR tension control system, single tension adjust(option) |
